ABB 2CHX592545A4000 Flush Mounted Rocker Switch - IP20
Part Number: 2CHX592545A4000
Quick Summary
ABB 2CHX592545A4000 flush mounted rocker switch controls 1‑gang, 2‑way lighting in industrial panels. Engineers often battle cramped enclosures, complex wiring, and inconsistent illumination in demanding environments. This device carries CE conformity, RoHS/REACH compliance, and IP20 protection, providing regulatory assurance and durable operation. Designed for fast, reliable installations, it uses a plug clamp connection and a compact footprint to save panel space. The combination of glow lamp indicators and optional illumination helps operators verify status at a glance, while robust mechanical design supports long service life in low- to medium‑duty control tasks. In short, it pairs tight integration with predictable performance to streamline procurement and maintenance workflows.
Product Information
Extended Description

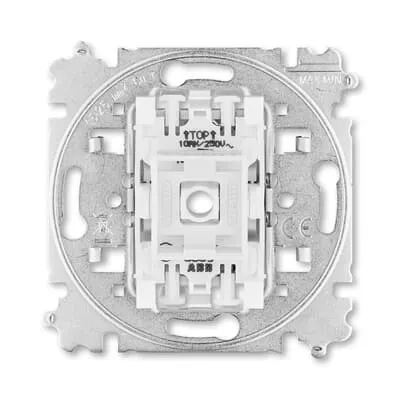

2CHX592545A4000 ABB: Rocker switch mechanism, 1gang 2way, with N terminal
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Function
Function lighting: Control and orientation
Number of Gangs
1
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Lamp Type
Glow lamp
Illumination
Optional
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Label Space Provided
No
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
51.7 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A25445
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature: Flush Mounted installation reduces panel depth and simplifies mounting, enabling cleaner enclosures in compact control cabinets. Business Impact: This minimizes space conflicts and accelerates installation during panel build or retrofits, lowering labor costs. Application: Ideal for 1‑gang, 2‑way lighting circuits in machine panels, switchboards, and operator stations. Feature: 1‑gang, 2‑way rocker switch with N terminal and plug clamp connection provides flexible control and secure wiring. Business Impact: Reduces wiring errors and rework, improves circuit traceability, and supports standard DIN rail or printed panel layouts. Application: Suitable for critical lighting control and orientation functions in industrial panels. Feature: Glow lamp indicator with optional illumination provides immediate status feedback even in low‑light environments. Business Impact: Improves operator awareness, reduces misoperation risk, and supports alarm and signaling schemes. Application: Common in process lines, packaging, and material handling stations. Feature: IP20 environmental protection and CE/ RoHS/ REACH compliance deliver safe operation and regulatory peace of mind. Business Impact: Minimizes exposure to dust ingress and hazardous substances, easing audits and end‑of‑life recycling. Application: Used across factory automation and machine control where surface-mounted control devices operate in clean to moderately dusty environments. Feature: Compact dimensions—81 mm width/height, 51 mm depth, 17 mm built‑in depth—plus 51.7 g weight—enable easy integration in tight panels. Business Impact: Improves space efficiency, reduces wiring length, and supports scalable panel design. Application: Fits on standard mounting footprints for many ABB and third‑party enclosures.
Get a Quick Quote for a ABB 2CHX592545A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX592545A4000?
Enquire Now
FAQs
The 2CHX592545A4000 is a flush mounted, 1‑gang, 2‑way rocker switch designed for panel mounting in compact enclosures. It uses a plug clamp connection for secure wiring and includes an N terminal for neutral wiring in two‑way circuits. This combination supports straightforward retrofits and clean, reliable terminations in standard distribution panels.
Rated at 250 V and 10 A, the device handles typical lighting loads in industrial panels. Its maximum switching current is specified for fluorescent lamps at 10 A, making it suitable for control of lighting circuits and orientation indicators in control cabinets without over‑rating the device. For higher loads or different lamp types, consider the load profile and duty cycle in your application.
Yes. It carries IP20 protection, CE and RoHS/REACH compliance, and a robust rocker mechanism designed for reliable operation in moderate dust and non‑contact environments inside control panels. While not rated for immersion or heavy washdown, it’s well suited for clean to moderately dusty factory environments and standard indoor control cabinets.
The device provides CE Declaration of Conformity, RoHS compliance, and REACH information. WEEE categorization is noted, and it adheres to the ETIM 9 class EC001590 for installation switches. These certifications simplify regulatory alignment, auditing, and end‑of‑life recycling across European and global manufacturing operations.
The plug clamp wiring reduces field termination time and minimizes miswiring risks, while the compact 81x81x51 mm footprint and light‑emitting glow lamp improve visibility and space efficiency in panels. Combined with RoHS/REACH and CE compliance, it lowers maintenance costs, accelerates assembly, and supports quicker upgrades or retrofits in industrial control environments.
