ABB 2CHX595245A4000 Flush Mounted Inserts - CE IP20
Part Number: 2CHX595245A4000
Quick Summary
ABB 2CHX595245A4000 Flush Mounted Inserts is a compact two-gang alternating switch for panel-mounted control. For engineers wrestling with cramped enclosures and wiring challenges, it simplifies installation and serviceability. It ships with CE conformity, RoHS, and REACH declarations and offers IP20 protection, suitable for indoor electrical panels. With a 250 V, 10 A rating and plug-clamp wiring, the unit delivers reliable, standards-compliant operation while minimizing wiring complexity and built-in depth. The design supports fast procurement and integration with existing ABB control components, helping engineers reduce commissioning time and total cost of ownership.
Product Information
Extended Description

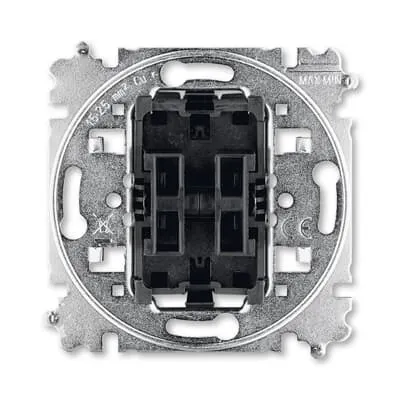

2CHX595245A4000 ABB: 3559-A52445 Rocker switch mechanism, 2gang 2way 3559-A52445
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Number of Gangs
2
Number of Rocker Switches
2
Wiring Configuration
Alternating-/alternating switch
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker/button
Connection Type
Plug Clamp
Illumination
Non-illuminated
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Current
Fluorescent Lamps 10 A
Label Space Provided
No
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
51 mm
Product Net Weight
58.4 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A52445
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC001590 - Installation switch
Feature → Business Impact → Application: The two-gang alternating switch arrangement provides independent control of two circuits in a single compact footprint, reducing panel area and simplifying wiring topology. This translates to lower installation labor and more predictable schematics, enabling faster commissioning on new machines and retrofit projects in manufacturing lines. Applicationwise, it suits control panels, machine enclosures, and operator stations that require reliable dual-channel operation without sacrificing space. Feature → Business Impact → Application: Plug clamp wiring speeds up connections and minimizes terminal fatigue, reducing installation time and common wiring errors. This translates into lower field service costs and improved panel reliability in harsh environments where vibration is a concern. Application: industrial automation panels, control consoles, and process cabinets. Feature → Business Impact → Application: IP20 protection and non-illuminated actuation provide safe indoor operation, reducing incidental contact risk and energy waste from unnecessary illumination. Application: indoor control panels in manufacturing, packaging lines, and panel boards. Feature → Business Impact → Application: Built-in depth of 17 mm and 81x81 mm net dimensions enable tight panel fits, lowering enclosure size and material costs while preserving accessibility for testing and maintenance. Application: compact control boxes and space-constrained machines. Feature → Business Impact → Application: RoHS and REACH declarations with a CE mark ensure regulatory compliance, simplifying audits and supplier documentation. Application: regulated facilities, automotive, and electronics assembly lines where traceability matters.
