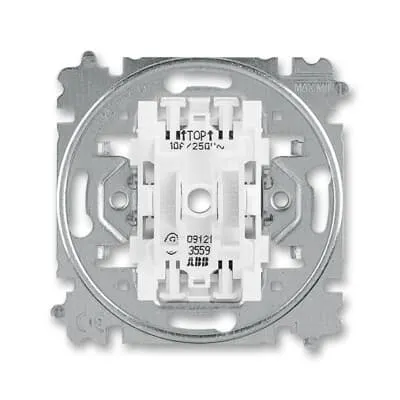

ABB 2CHX598735A4000 Flush Mounted Inserts - IP20 CE
Part Number: 2CHX598735A4000
Quick Summary
ABB 2CHX598735A4000 flush mounted inserts enable reliable, double-pole switching in control panels for industrial equipment. In compact panel builds, poor mounting and wiring complexity often cause downtime and inconsistent performance. This part carries CE conformity, RoHS/REACH compliance, and an IP20 protection rating, signaling safety, regulatory alignment, and suitability for non-hazardous environments. Built for plug clamp connections and screw fastening, it speeds installation, reduces field labor, and supports scalable automation across machine tools and process lines. With two rockers, 2P, 1 gang, and a 250 V, 10 A rating, the insert delivers dependable control in compact, white thermoplastic housings.
Product Information
Extended Description
2CHX598735A4000 ABB: Switch insert double 1-pole retractive
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Contacts Configuration
2 NO, 0 NC
Number of Poles
2P
Number of Gangs
1
Number of Rocker Switches
2
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker
Connection Type
Plug Clamp
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts CO
0
Number of Contacts NC
1
Surface Finishing
Untreated | Matt
Material
Plastic | Thermoplastic
Label Space Provided
No
Color
white
Product Net Weight
43.5 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A87345
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC000029 - Push button
Feature: Mounting Type is Flush Mounted. Benefit: Provides a clean fascia, saves panel depth, and enables easier maintenance in dense control environments. Application: Ideal for instrument enclosures and machine panels where space is at a premium and visual marginalia matters. Feature: Type of Fastening is Screw. Benefit: Secure, vibration-resistant installation suitable for industrial vibrations and frequent access. Application: Suitable for switch inserts in manufacturing lines with regular access requirements. Feature: Degree of Protection is IP20. Benefit: Reliable protection against finger access and incidental contact in indoor environments. Application: Common in control cabinets and wall-mounted panels with limited exposure to moisture. Feature: Number of Poles is 2P and Number of Rocker Switches is 2. Benefit: Dual-pole control with simultaneous actuation improves process reliability. Application: Two-indicator control points for motors or conveyors in automation systems. Feature: Connection Type is Plug Clamp. Benefit: Quick, tool-free wiring that reduces commissioning time and field errors. Application: Field service where fast replacement and predictable wiring are critical. Feature: Rated Voltage 250 V and Rated Current 10 A. Benefit: Handles typical low-voltage control circuits and motor-control tasks with a robust margin. Application: Standard control panels powering small motors, solenoids, and indicators in industrial settings. Feature: Material is Plastic Thermoplastic, Color White. Benefit: Lightweight, cost-effective housing with predictable insulation properties. Application: Widely used in control panels requiring non-metallic, flame-retardant components. Feature: Built-In Depth 17 mm and Product Net Weight 43.5 g. Benefit: Slim profile supports compact enclosures and reduces dead space. Application: Ideal for panelbacks with tight mounting tolerances. Feature: RoHS/REACH Declarations and CE conformity. Benefit: Regulatory compliance that simplifies procurement and risk management. Application: Meets European environmental and safety standards for automated equipment.
Get a Quick Quote for a ABB 2CHX598735A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX598735A4000?
Enquire Now
FAQs
This insert uses a flush-mounted design with screw fastening, providing a clean front face and secure mounting in compact control panels.
Yes. It is rated for 250 V and up to 10 A, with two normally open contacts configured for two-pole control via a plug clamp connection.
It carries CE conformity, RoHS/REACH declarations, and a WEEE categorization, with a CE EU Declaration of Conformity (3559) and ETIM EC000029 for push-button classification.
Yes. The part is designed for plug clamp wiring, 2 rocker switches, and a 1-gang footprint, fitting common panel cutouts and enabling quick field replacement.
The housing is white, untreated matte thermoplastic, with IP20 protection, built-in depth of 17 mm, and a weight of 43.5 g, suitable for indoor electrical enclosures.
