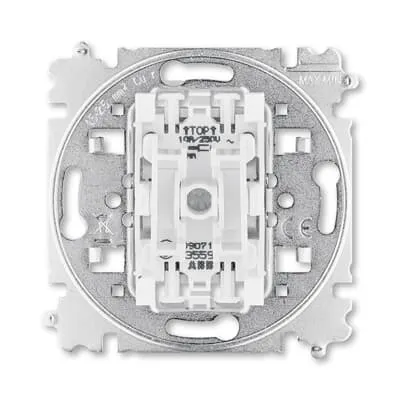

ABB 2CHX598845A4000 Flush Mounted Inserts - IP20
Part Number: 2CHX598845A4000
Quick Summary
ABB 2CHX598845A4000 Flush Mounted Inserts deliver reliable 2P rocker switch control for panel interfaces. Engineers often struggle with compact mounting in tight control enclosures and ensuring wiring remains clean during frequent maintenance. This insert meets CE conformity, RoHS-compliant materials, and IP20 protection, reinforcing safety and reliability in industrial environments. Its 2-button, 1-gang configuration and screw mounting support streamlined installation and consistent labeling. With a 250 V rating and 10 A current capability, it aligns with common automation standards while keeping panel real estate efficient, enabling faster commissioning and reduced downtime for machine builders and service teams.
Product Information
Extended Description
2CHX598845A4000 ABB: 3559-A88445 Blind rocker push-switch mechanism 3559-A88445
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP20
Number of Poles
2P
Number of Buttons
2
Number of Gangs
1
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker
Connection Type
Screw
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Surface Finishing
Untreated | Matt
Material
Material quality: Thermoplastic, Material: Plastic
Label Space Provided
No
Product Net Weight
52.9 g
Built-In Depth (t2)
19 mm
Replaced Product ID (OLD)
3559-A88445
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC000044 - Window blind switch
Feature → Business Impact → Application: Flush Mounted design enables a low-profile panel footprint, reducing overall enclosure size and improving accessibility in dense control cabinets; this supports faster wiring checks and safer maintenance, especially in 1-gang installations where space is at a premium. Feature → Compatibility with screw mounting provides secure, vibration-resistant mounting, lowering rework and field failures in harsh manufacturing environments; ideal for 2P rocker switch applications in assembly lines and process controls. Feature → Electrical rating of 250 V and 10 A ensures reliable switching for standard automation circuits, reducing the risk of nuisance trips and extending component life in routine machine operations. Feature → Material and finish, thermoplastic with matt surface, offers durable, easy-to-clean interfaces that resist wear in factory floors; suitable for front-panel controls on CNCs, robotics, and packaging lines. Feature → RoHS and CE declarations, along with REACH information, provide regulatory compliance and traceability for serialized projects, lowering procurement risk and improving audit readiness. Feature → Built-in depth of 19 mm and 2-button rocker actuator support compact, ergonomic operation, enabling intuitive control in space-constrained control panels and HMI interfaces.
Get a Quick Quote for a ABB 2CHX598845A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX598845A4000?
Enquire Now
FAQs
Yes. The device is designed for flush mounting in a 1-gang footprint and uses a secure screw fastening method, ensuring stable operation in typical control panels. The built-in depth of 19 mm keeps panel profiles slim, aiding retrofits and new builds alike.
It is rated for 250 V and 10 A, suitable for standard automation circuits. It carries CE conformity with EU Declarations of Conformity and RoHS compliance, and its IP20 protection rating provides basic finger-safe protection inside enclosures, aligning with common industrial safety requirements.
Yes. The actuator type is a rocker with a basic element contact arrangement as per IEC 60947-5-1 specifications, making it compatible with common control circuit designs and ensuring predictable switching behavior in automated systems.
IP20 indicates protection against finger intrusion but not water exposure; use within interior panels. The thermoplastic, matte finish is durable and easy to clean, reducing maintenance downtime. Avoid exposure to water jets or corrosive environments; pairing with appropriate enclosure seals maintains integrity.
The combination of compact depth, screw mounting, reliable 2P/2-button operation, and regulatory compliance minimizes rework, accelerates assembly, and lowers service costs. Lightweight at 52.9 g, it also contributes to overall device ergonomics and reduces panel loading while delivering durable, compliant performance.
