ABB 2CHX599135A4000 Flush Mounted Inserts - IP20
Part Number: 2CHX599135A4000
Quick Summary
ABB 2CHX599135A4000 flush mounted inserts provide a compact one-pole rocker switch solution for control panels and enclosures. Engineers often face tight spaces and wiring challenges, so a streamlined insert can reduce assembly time and errors. It carries CE conformity, RoHS compliance, and IP20 protection for indoor applications, supported by a plug-clamp connection for reliable wiring. With ABB EcoSolutions alignment and a modular design, it helps shorten time-to-market while improving maintenance outcomes. This 1P, 1NO configuration fits compact enclosures, delivering dependable operation in everyday automation tasks.
Product Information
Extended Description

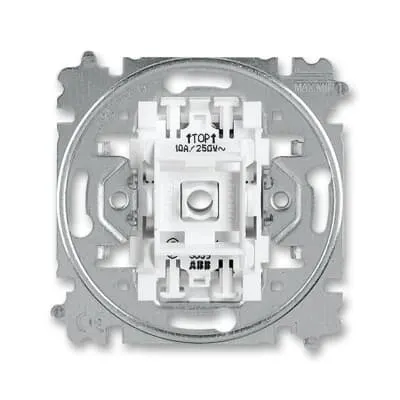

2CHX599135A4000 ABB: Switch insert 1-pole w.light retract.
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Contacts Configuration
1 NO, 0 NC
Number of Poles
1P
Number of Gangs
1
Number of Rocker Switches
1
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker
Connection Type
Plug Clamp
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts CO
0
Number of Contacts NC
0
Surface Finishing
Untreated | Matt
Material
Plastic | Thermoplastic
Label Space Provided
No
Color
white
Product Net Weight
42.2 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A91345
ABB EcoSolutions
Yes
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 64 %
Material Resource Reduction (wt. %)
Design for Reduced Resource Consumption - 0 %
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
Improved Energy Efficiency for Customers
Process Efficiency - Product improves/optimizes process
Extended Product Lifetime
Product Modularity
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
EPD R60 Switch inserts 3559
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC000029 - Push button
