ABB 2CHX599145A4000 Flush Mounted Inserts - IP20
Part Number: 2CHX599145A4000
Quick Summary
ABB 2CHX599145A4000 is a flush-mounted push-switch insert for 1‑gang control in electrical panels. This compact module addresses mounting and wiring challenges common in tight automation enclosures. It meets CE conformity, RoHS and REACH declarations, and IP20 protection for reliable field use. By combining a robust rocker mechanism with plug-clamp wiring, it delivers faster installation, easier diagnostics, and sustained compliance, helping electrical teams reduce panel downtime while improving overall system reliability. Leveraging ABB’s automation ecosystem, it also supports scalable integration with standard control circuits and panel layouts, streamlining procurement and maintenance for industrial facilities.
Product Information
Extended Description

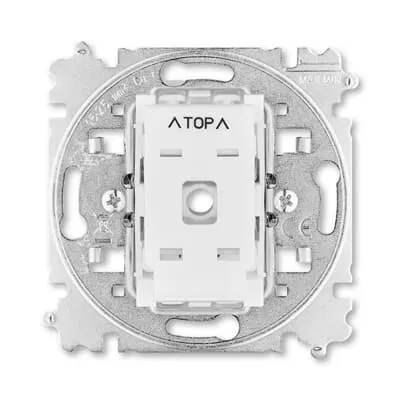

2CHX599145A4000 ABB: Rocker push-switch mechanism, 1gang 1way, with N terminal
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Contacts Configuration
1 NO, 0 NC
Number of Poles
1P
Number of Gangs
1
Number of Rocker Switches
1
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Rocker
Connection Type
Plug Clamp
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts CO
0
Number of Contacts NC
1
Surface Finishing
Untreated | Matt
Material
Plastic | Thermoplastic
Label Space Provided
No
Product Net Weight
51.2 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A91445
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC000029 - Push button
Feature → Business Impact → Application: The flush-mounted mounting type enables a clean, space-saving panel presentation, reducing enclosure depth requirements and aiding in compliant panel design; this translates to faster assembly and easier labeling in machine control closets. Application: control panels in automation lines benefit from neater layouts and simpler servicing. Feature → Business Impact → Application: Plug clamp wiring speeds up installation, lowers risk of loose connections, and minimizes wiring errors; result is reduced commissioning time and lower field service costs in high-mix manufacturing. Application: machine interfaces in packaging and process lines benefit from reliable tactile feedback and predictable actuation. Feature → Business Impact → Application: 250 V rated voltage and 10 A rated current support standard control circuits, enabling compatibility with lighting and motor-control panels; result is fewer component mismatches and improved regulatory compliance. Application: simple 1 NO, 0 NC configuration reduces complexity in start/stop operations and protects against accidental energization; ideal for standalone control points in conveyor or pick-and-place systems. Feature → Business Impact → Application: 1P, 1G, 1 rocker switch configuration ensures a compact, durable user interface; use it in instrument panels where space is at a premium. Application: medical device or process equipment panels that demand low-profile ergonomic switches with robust IP20 protection and durable thermoplastic construction. Feature → Business Impact → Application: built-in depth of 17 mm minimizes panel intrusion, freeing space for wiring and other devices; ideal for dense control enclosures in plastics manufacturing and packaging lines. Application: tight-installation environments where panel real estate is a critical constraint. Feature → Business Impact → Application: RoHS and REACH compliance with CE declaration guarantees regulatory alignment and supply-chain confidence; reduces risk of non-compliance penalties and supplier audits. Application: automotive assembly lines and food & beverage equipment where regulatory adherence is non-negotiable.
