ABB 2CHX599245A4000 Flush Mounted Inserts - CE
Part Number: 2CHX599245A4000
Quick Summary
ABB 2CHX599245A4000 flush mounted insert switches provide 1P, 1 NO control for panel enclosures. Many engineers face space constraints and wiring access challenges when upgrading control panels. It carries CE, RoHS, and REACH declarations to support compliance through the product lifecycle. In addition, the IP20 protection rating and plug-clamp connection enable reliable front-access installation with minimal maintenance, while the compact 17 mm built-in depth keeps enclosure profiles slim. This combination delivers faster commissioning, reduced wiring complexity, and predictable performance in automation cabinets, panels, and equipment housings, aligning with design-for-maintainability and cost-saving procurement goals.
Product Information
Extended Description

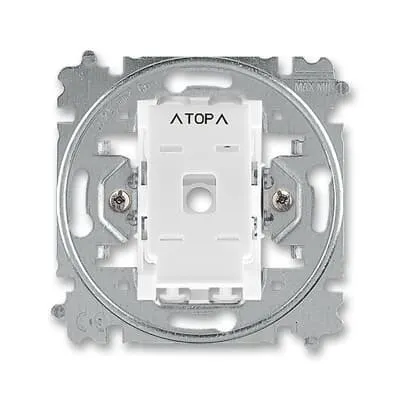

2CHX599245A4000 ABB: Card switch mechanism, 1gang 1way (NO), with N terminal
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Contacts Configuration
1 NO, 0 NC
Number of Poles
1P
Number of Gangs
1
Number of Rocker Switches
1
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Basic element
Actuator Type
Hotel card
Connection Type
Plug Clamp
Battery Weight
0 g
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts CO
0
Number of Contacts NC
0
Surface Finishing
Untreated | Matt
Material
Plastic | Thermoplastic
Label Space Provided
No
Color
white
Product Net Weight
53.6 g
Built-In Depth (t2)
17 mm
Replaced Product ID (OLD)
3559-A92445
RoHS Information
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC_3559 insert_2CHC663079X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20220411
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - 3559
ETIM 9
EC000029 - Push button
Feature: Flush Mounted Mounting Type → Business Impact: Saves panel depth and enables clean front access → Application: Front-panel control in machine enclosures, reducing overall footprint and improving serviceability. Feature: 1 NO, 0 NC Contacts Configuration → Business Impact: Simplifies wiring and reduces risk of misconfiguration → Application: Single-pole control circuits in compact panels with straightforward operation. Feature: IP20 Degree of Protection → Business Impact: Suitable for dry indoor environments, enhancing reliability and reducing ingress risk → Application: Control panels in factory floors and office-grade electrical cabinets. Feature: Plug Clamp Connection → Business Impact: Speeds installation and improves connection integrity, lowering labor costs → Application: Rapid field wiring in new builds and retrofits. Feature: Material and Finish (Plastic Thermoplastic, White) → Business Impact: Lightweight, cost-effective, and aesthetically consistent with panel interiors → Application: OEM panels and cabinet interiors with standard color requirements. Feature: Rated Voltage 250 V and Rated Current 10 A → Business Impact: Supports common control circuits while maintaining safety margins → Application: 1P control modules, indicator circuits, and front-panel switches. Feature: Built-in Depth 17 mm and Weight 53.6 g → Business Impact: Minimal intrusion into enclosure backplanes and easy handling during installation → Application: Slim, space-conscious panel designs and retrofit projects. These features collectively enable faster commissioning, predictable performance, and cost-efficient procurement for panel builders and machine OEMs.
Get a Quick Quote for a ABB 2CHX599245A4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CHX599245A4000?
Enquire Now
FAQs
The device is a flush mounted insert designed for panel-front installation with screw fastening and a plug clamp connection, delivering a compact footprint and reliable front-access wiring for 1P, 1 NO circuits in standard enclosures.
Yes. It carries an IP20 rating, making it appropriate for dry, indoor panel applications where protection against solid objects over 12.5 mm is required, with no exposure to moisture or immersion.
The insert is rated for 250 V and 10 A, with 1 pole and 1 NO contact configuration (0 NC), suitable for simple, single‑pole control circuits in front panels and control cabinets.
This product carries CE conformity, RoHS and REACH declarations, plus a EU Declaration of Conformity, ensuring regulatory compliance and responsible lifecycle management.
Ideal for control panels, machine front-ends, and equipment housings where space is limited. It uses plug clamp connections and screw fastening for reliable installation, and its compact depth supports slim enclosures while meeting 1P, 1 NO requirements.
