2CHY000043Z0000
Part Number: 2CHY000043Z0000
Product Information
Extended Description

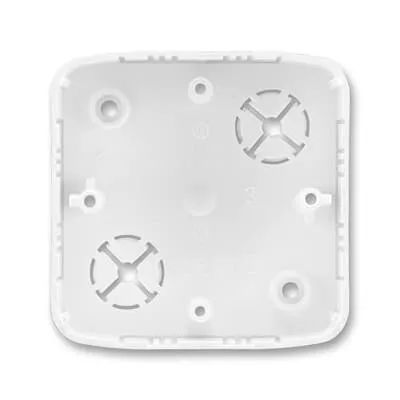

2CHY000043Z0000 ABB: For trunking distribution systems. For flush-mounted switches and socket outlets. Internal depth: 25 mm External dimensions: 81 × 81 × 28 mm Screws for fi xation of inserts included.
Mounting Orientation
Horizontal
Number of Gangs
1
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Surface mounted housing
Opening Shape
Angular
Battery Weight
0 g
Number of Batteries
0
Design Range
Tango
Surface Finishing
Untreated | Glossy
Material
Material quality: Thermoplastic | Material: Plastic
Color
white
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
20 mm
Product Net Weight
42.3 g
Replaced Product ID (OLD)
000000001000383479
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20221103
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000080 - Surface mounted box for flush-mounted switching equipment
