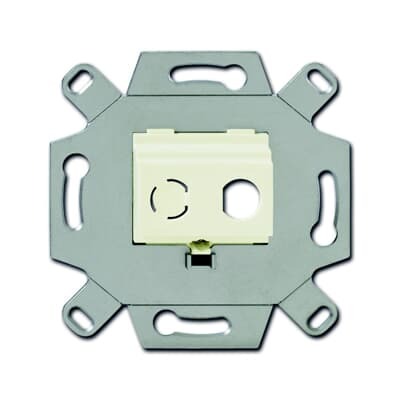

ABB 2CKA000230A0436 Flush Mounted Inserts - IP20, CE
Part Number: 2CKA000230A0436
Quick Summary
Flush Mounted Inserts ABB 2CKA000230A0436 provide clean, secure jack integration for SAT telecom installations. Engineers struggle with compatibility across trunk systems and underfloor layouts when a versatile insert is missing. The product carries CE conformity and RoHS compliance with IP20 protection, supporting safety and environmental standards. Its oyster white matte metal finish aligns with rugged industrial environments while helping maintain a consistent aesthetic. With screw-mounted installation and precise built-in depth, it reduces field time and inventory complexity for project teams. Designed for telephone connection unit cover plates 2539-21x and 1766-xxx, it provides flexible jack support for 1 or 2 jacks.
Product Information
Extended Description
2CKA000230A0436 ABB: Suitable for telephone connection unit cover plates 2539-21x and 1766-xxx. To support 1 or 2 jacks. For trunk systems, flush-mounted wall boxes and underfloor systems. Without cover plate. Without claws.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP20
Application
SAT
Connection Type
BNC | F-Connector
Outlet Orientation
Straight
Battery Weight
0 g
Surface Finishing
Matt
Material
Metal
RAL Number
RAL 1013 - Oyster White
Color
white
Product Net Width
0.036 m
Product Net Height
0.046 m
Product Net Depth / Length
0.047 m
Product Net Weight
28 g
Built-In Depth (t2)
32 mm
Replacement Product ID (NEW)
2CKA000230A0437
RoHS Information
Product Declaration.PDF [EN] 0262/11-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
Product Declaration.PDF [EN] 0262/11-500
Feature : Flush Mounted design simplifies installation in SAT trunks and flush-wall boxes, delivering a faster, more reliable field setup. Business Impact : Reduces on-site labor, minimizes mounting errors, and enables standardized enclosure layouts across multiple environments. Application : Ideal for trunk systems, flush-mounted wall boxes, and underfloor installations, delivering consistent performance with minimal rework. Feature : Screw fastening provides a secure, vibration-resistant fit in harsh industrial settings. Business Impact : Improves long-term reliability and reduces maintenance calls, delivering measurable uptime gains. Application : Suitable for heavy cables and active installations where stability matters in SAT configurations. Feature : IP20 protection with a robust metal, matt finish. Business Impact : Protects internal components from dust ingress and mechanical wear, extending service life and lowering total ownership cost. Application : Safe for indoor plant and office environments with moderate dust exposure. Feature : BNC | F-Connector and straight outlet for straightforward signal paths. Business Impact : Minimizes misconnection risk and speeds up commissioning in video/telecom applications. Application : Direct compatibility with SAT equipment and trunk-system connectors. Feature : Compact dimensions and light weight (0.036 m width, 0.046 m height, 0.047 m depth; 28 g). Business Impact : Simplifies logistics, reduces inventory footprint, and enables easy replacement without tool-intensive handling. Application : Suits modular rack and panel layouts, including underfloor deployments. Feature : RoHS, CE declarations and clear documentation including replacement product ID. Business Impact : Ensures regulatory compliance and traceability, facilitating audits and supplier reliability. Application : Aligns with corporate compliance programs and field installation standards.
