2CKA000299A0032
Part Number: 2CKA000299A0032
Product Information
Extended Description

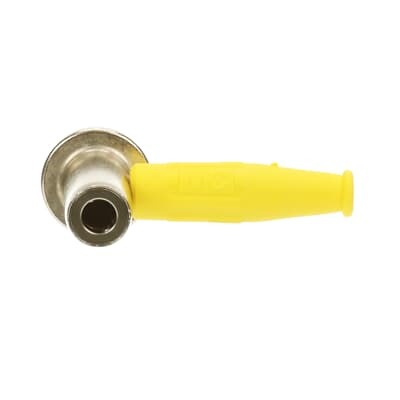

2CKA000299A0032 ABB: Suitable for plug 2095 UC-xxx and built-in jack 0471-0-0037
Acc. to German Standard DIN 42801.
Connection up to 6 mm² (crimped or soldered).
Mounting Type
Flush Mounted
Modular Components Included
Accessory Insert
Degree of Protection
IP20
Application
Potential balancing jack
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | alpha | impuls
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur
Surface Finishing
Untreated | Glossy
Material
Metal
Color
yellow
Product Net Width
40 mm
Product Net Height
20 mm
Product Net Depth / Length
28 mm
Product Net Weight
30 g
E-Number (Finland)
7060292
E-Number (Sweden)
1815399
RoHS Information
Product Declaration.PDF [EN] 0299-0-0032
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
007d326f-edea-4238-bc09-e6a0e0f2d752 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Product Declaration.PDF [EN] 0299-0-0032
ETIM 9
EC000090 - Potential equalization socket outlet
eClass
V11.0 : 27144035
