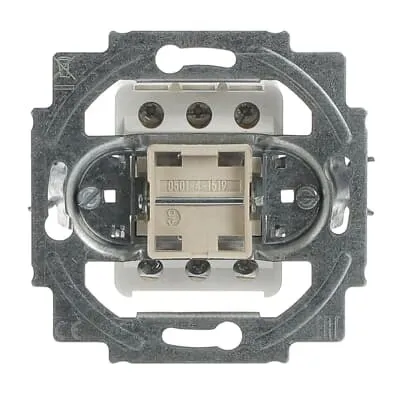

ABB 2CKA001012A0954 Switch Insert for 2-Pole Systems - IP20
Part Number: 2CKA001012A0954
Quick Summary
ABB 2CKA001012A0954 Switch Insert is a compact two-pole, non-illuminated switch module for flush-mounted control panels. Engineers often confront challenges with secure wiring access and fitting small enclosures without sacrificing performance. This product carries CE and UKCA conformity declarations, plus IP20 protection, RoHS and REACH compliance to help you meet regulatory requirements in indoor environments. By aligning with ABB’s design ecosystem, it also delivers consistent interoperability across design ranges, reducing integration time and minimizing spare-part variety. For project teams, the combination of a robust electrical spec and a compact footprint translates into faster delivery, simpler maintenance, and lower lifecycle costs for industrial automation projects.
Product Information
Extended Description
2CKA001012A0954 ABB: Cannot be illuminated.
Wiring Diagram
Connection diagramm [EN] 2000_6_2us
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Number of Rocker Switches
1
Wiring Configuration
Two-way switch 2-pole
Actuator Type
Rocker/button
Illumination
Non-illuminated
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
33 mm
Dimension Diagram
Dimension drawing [EN] m_2000_6_2us
RoHS Information
Product Declaration.PDF [EN] 2000/6/2 US
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/6/2 US
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] 2000_6_2 US
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature → Business Impact → Application: Wiring Diagram and Two-way switch 2-pole with a clear connection diagram [EN] 2000_6_2us reduces commissioning errors and speeds up panel wiring. This translates into lower installation labor costs and faster time-to-production for machine lines, especially in tightly packed control cabinets. Application: control panels and machine enclosures requiring reliable 2-pole operation. Feature → Business Impact → Application: Flush Mounted mounting type with mount plate delivers a clean panel face and minimal protrusion, improving enclosure aesthetics and protection against dust ingress. This supports safer, easier maintenance and compliance with enclosure standards in compact industrial spaces. Application: flush-mounted installations in Busch-Duro 2000 SI and Reflex SI ranges. Feature → Business Impact → Application: Illumination is non-illuminated with screw terminals; this reduces power draw, simplifies wiring, and lowers fault risk in environments where indicator lamps are unnecessary. Application: non-illuminated status control in routine machine start/stop circuits. Feature → Business Impact → Application: Electrical specs 250 V and 10 A enable reliable switching for standard automation loads up to 100 W per channel, balancing performance and thermal management. Application: general-purpose control of actuators and indicators in panel assemblies. Feature → Business Impact → Application: Material and compliance (thermoplastic or duroplast; RoHS/REACH; WEEE) ensure regulatory alignment and safer disposal, reducing risk during audits. Application: European and global manufacturing environments with strict material standards. Feature → Business Impact → Application: IP20 rating provides suitable protection for indoor control panels, allowing cost-effective use in non-harsh environments while supporting CE/UKCA declarations. Application: indoor electrical installations in factory floors and assembly lines. Feature → Business Impact → Application: Dimension and weight (71x71x40 mm, 60 g) deliver a compact footprint with easy handling and installation in crowded panels. Application: retrofits and new builds where space is at a premium, including retrofit of legacy control inserts.
Get a Quick Quote for a ABB 2CKA001012A0954
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001012A0954?
Enquire Now
FAQs
The switch insert is designed for flush-mounted panel installations and supports screw-terminal wiring for two-way, 2-pole control. It fits within standard control enclosures and is compatible with ABB design ranges such as Busch-Duro 2000 SI and Reflex SI, enabling easy retrofits and consistent panel modernization.
Key specs are 250 V rated voltage and 10 A rated current with a non-illuminated actuator. The device handles typical automation loads up to around 100 W and uses screw terminals for reliable connections. Its IP20 rating provides indoor protection, while CE/UKCA declarations ensure regulatory compliance for industrial panels.
Yes. It is a two-way, 2-pole switch with a rocker/button actuator, designed specifically for two-way control configurations. The wiring diagram EN 2000_6_2us aids correct installation, and the flush-mounted design supports compact panel layouts common in machine control cabinets.
The device carries CE and UKCA conformity declarations and RoHS/REACH compliance. WEEE categorization and related declarations are provided, supporting responsible disposal and environmental compliance across European and other global manufacturing sites.
The switch insert reduces installation time with a ready-made, compatible two-pole module and standard screw terminals, lowering commissioning costs. Its compact footprint and robust IP20 protection minimize panel rework, while broad compliance (CE/UKCA, RoHS, REACH) lowers audit risk and supports long-term maintenance efficiency.
