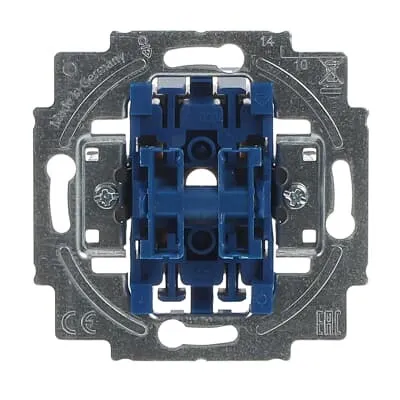

ABB 2CKA001012A1085 Switch Insert - 10 A IP20.
Part Number: 2CKA001012A1085
Quick Summary
ABB 2CKA001012A1085 Switch Insert performs reliable dual rocker operation for local control in enclosure panels. Engineers often confront wiring complexity and tight space in control cabinets, which this compact flush-mounted insert tackles with a two-gang arrangement. It carries CE conformity, RoHS and REACH declarations and IP20 protection, delivering regulatory compliance and safe operation in typical industrial environments. The design also supports optional illumination and compatibility with screwless terminals, helping streamline installation, reduce wiring time, and improve maintenance in panel assemblies. Used across machine building, packaging, and material handling, it provides solid value for procurement and project timelines.
Product Information
Extended Description
2CKA001012A1085 ABB: Neon lamp 8338-1 as orientation light can be added from the back of the switch insert.
The Illumination set is powered by the connected load.
Suitability and maximum current for Illumination sets by the connected load must be ensured.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Rocker Switches
2
Wiring Configuration
Series switch
Actuator Type
Rocker/button
Illumination
Optional
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
Dimension Diagram
Dimension drawing [EN] m_2000_4us
RoHS Information
Product Declaration.PDF [EN] 2000/5 US
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
0231ccc7-f5c4-4281-973b-228f5e85e815 Germany (DE)
Simplified SCIP
0231ccc7-f5c4-4281-973b-228f5e85e815 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/5 US
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature: Flush Mounted installation type provides a clean panel look and reduces mounting depth, enabling compact control enclosures. Business impact: Faster installation and reduced panel footprint lead to lower assembly costs and improved serviceability. Application: Suitable for machine cabins and control panels in packaging lines where space is at a premium. Feature: Two rocker switches with series wiring configuration enables straightforward control of two circuits from a single insert. Business impact: Simplified wiring logistics and consistent actuator behavior reduce commissioning time and field errors. Application: Automation panels for conveyors and sorting systems. Feature: Screwless terminals speed up assembly and minimize loose connectors. Business impact: Quicker maintenance with fewer connection points, improving uptime and reliability. Application: Routine panel servicing in high-volume production environments. Feature: Optional illumination powered by the connected load allows orientation and status visibility without extra wiring. Business impact: Enhanced operator guidance and reduced need for separate lighting components. Application: Night shifts and dim environments in process lines. Feature: Material options (Thermoplastic | Duroplast) and IP20 protection ensure durability and safe operation in typical factory settings. Business impact: Compliance with industry standards and robust performance in indoor enclosures. Application: Panels exposed to routine handling and routine cleaning. Feature: Compatibility with design ranges like Busch-Duro 2000 SI and Reflex SI supports scalable, cross-brand panel modernization. Business impact: Future-proofing and reduced rework when updating control stations. Application: Modernized automation cabinets in mid-to-large scale plants.
Get a Quick Quote for a ABB 2CKA001012A1085
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001012A1085?
Enquire Now
FAQs
Yes. The 2CKA001012A1085 is designed as a flush-mounted two-gang insert with a mounting plate, compatible with common panel cutouts. It supports mounting with claws or screws and uses screwless terminals for quick, reliable connections. Its IP20 rating ensures protection against dust and incidental contact in typical indoor industrial environments.
The module is rated for 250 V and 10 A, suitable for controlling medium-load circuits in control panels. Illumination is optional and powered by the connected load, with a Neon orientation light available when required. The unit uses a two-gang configuration with screwless terminals, enabling clean wiring and straightforward integration into existing automation schemes.
Industries including machine building, packaging, and material handling benefit due to the compact two-gang footprint, orientation lighting option, and compatibility with Busch design ranges. It is ideal for control panels requiring efficient wiring, quick maintenance, and compliant operation under CE, RoHS, and REACH in standard manufacturing environments.
The switch insert carries CE conformity, RoHS compliance, REACH information, and related declarations. IP20 protection denotes suitability for interior panel mounting. WEEE categorization and SCIP data are provided to support end-of-life handling and supply-chain compliance in European operations.
Screwless terminals simplify field assembly, reducing wiring time and the likelihood of loose connections, which lowers maintenance costs and downtime. The modular, flush-mounted design aligns with existing panel architectures, minimizing rework during upgrades and providing a scalable solution for evolving automation layouts, ultimately delivering faster project delivery and improved ROI.
