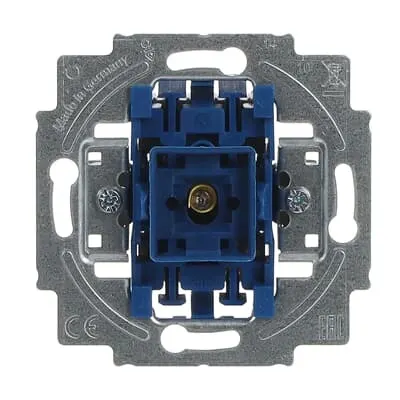

ABB 2CKA001012A1127 Switch insert Neon - IP20
Part Number: 2CKA001012A1127
Quick Summary
ABB 2CKA001012A1127 Switch insert enables two-way control with a neon orientation lamp for panel-mounted applications in industrial equipment. Operators often contend with cramped enclosures and hard-to-read indicators, which can lead to misoperation or longer changeovers. This unit carries CE conformity, RoHS and REACH declarations, and an IP20 protection rating to support reliable indoor use in demanding environments. The combination of a front-accessible lamp, a compact flush-mounted footprint, and compatibility with common design ranges helps shorten installation time and reduce maintenance cycles. By delivering clear status indication and robust construction, it supports safer, more efficient machine operation while aligning with procurement and compliance standards.
Product Information
Extended Description
2CKA001012A1127 ABB: With neon lamp 8352 as orientation light.
Lamp can be changed from the front of the switch insert.
The Illumination set is powered by the connected load.
Suitability and maximum current for Illumination sets by the connected load must be ensured.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Actuator Type
Rocker/button
Lamp Type
Neon lamp
Illumination
Illuminated
Lamp Color
Orange
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
Dimension Diagram
Dimension drawing [EN] m_2020usgl
RoHS Information
Product Declaration.PDF [EN] 2000/6 USGL
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/6 USGL
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature: Two-way switch with a neon orientation lamp. Business Impact: improves operator visibility and reduces misoperation in dense control panels, leading to fewer startup errors and faster diagnostics. Application: ideal for panel-mounted control in packaging lines and conveyors. Feature: Front replacement neon lamp. Business Impact: lowers maintenance time and extends component life by allowing lamp replacement without removing the entire switch insert. Application: suitable for serviceable indicators in tight enclosures where uptime is critical. Feature: Illumination powered by the connected load. Business Impact: avoids extra wiring or separate supply runs, simplifying installation and reducing wiring complexity. Application: common in machine enclosures with integrated indicator illumination. Feature: IP20 protection and rugged materials. Business Impact: ensures safe operation in indoor environments and improves resistance to dust- and moisture-facing panel interiors, reducing field failures. Application: fits standard indoor control panels across industrial sectors. Feature: Flush-mounted mounting with dual fastening options. Business Impact: supports quick retrofits with either claw or screw fixation, cutting install time and enabling flexible retrofits. Application: compatible with Flush Mounted Inserts and mounting plates on Busch-Duro and similar frames. Feature: Screwless terminals and robust electrical spec. Business Impact: simplifies wiring, enhances reliability, and supports clean, reusable terminations in maintenance cycles. Application: suitable for high-availability control circuits up to 250 V and 10 A.
Get a Quick Quote for a ABB 2CKA001012A1127
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001012A1127?
Enquire Now
FAQs
The switch insert is designed for flush-mounted installation with a mounting plate and supports mounting with claw or screw fixation. It is compatible with standard panel cutouts and is suitable for integration into Busch-Duro 2000 SI, Reflex SI, and similar frame families. For retrofits, ensure the mounting depth and built-in depth meet the 25 mm t2 specification and that screwless terminals can accommodate existing conductor ferrules. This compatibility minimizes rework and accelerates project timelines in panel modernization projects.
Key specifications include a rated voltage of 250 V and a rated current of 10 A, with a lamp power handling of up to LEDi/CFLi 100 W. The lamp is a neon type for orientation lighting, and illumination is powered by the connected load. The two-way wiring configuration and screw terminals support reliable connections in control circuits, while maintaining safe operation within the listed electrical envelope for typical industrial environments.
This switch insert is designed for compatibility with a broad range of ABB and Busch legacy frames, including Busch-Duro 2000 SI and Reflex SI lines, as well as other modular frame systems listed in the design range. The unit ships as a flush-mounted insert with a mounting plate, enabling straightforward integration into existing panels. When retrofitting, verify the panel thickness, built-in depth and mounting hole pattern to ensure precise alignment and reliable operation.
The product carries CE conformity and RoHS/REACH declarations, addressing essential safety and environmental requirements for many markets. It also adheres to WEEE categorization for small equipment. The IP20 protection rating supports indoor use, protecting against solid objects larger than 12 mm and offering basic protection in non-damp environments. These certifications help ensure regulatory compliance and reduce risk during procurement and installation.
The switch insert delivers clearer status indication with an orientation neon lamp, enabling quicker operator responses and fewer misoperations. Its front lamp replacement capability reduces maintenance downtime, while screwless terminals simplify wiring for technicians. Compatibility with multiple frame families and flush-mounted installation supports scalable retrofits, contributing to lower lifecycle costs, faster commissioning, and improved overall equipment effectiveness (OEE) in manufacturing environments.
