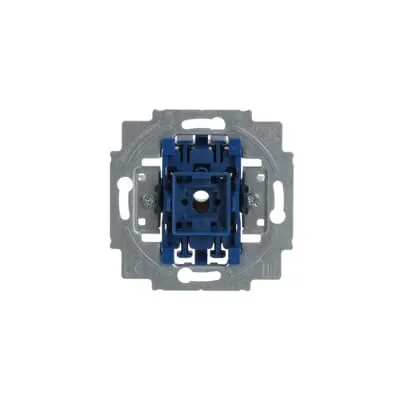

ABB 2CKA001012A1143 Switch Insert - IP20
Part Number: 2CKA001012A1143
Quick Summary
ABB 2CKA001012A1143 switch insert offers two-way switching with optional illumination for control panels. Engineers often struggle with compact panel space, wiring complexity, and the need for reliable mounting in harsh environments. This module carries IP20 protection, CE conformity, and RoHS/REACH declarations to support safety, regulatory compliance, and traceability across assemblies. The flush-mounted design with a mounting plate and screwless terminals simplifies installation, reduces field wiring time, and minimizes component variety on the bill of materials. With a 250 V rating and 10 A capacity, it fits standard industrial panels while preserving headroom for illumination accessories when required.
Product Information
Extended Description
2CKA001012A1143 ABB: Can be illuminated by using a Illumination set as an accessory.
The Illumination set is powered by the connected load.
Suitability and maximum current for Illumination sets by the connected load must be ensured.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Actuator Type
Rocker/button
Illumination
Optional
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2000/6 US-506
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/6 US-506
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
The product combines flush-mounted installation with both claw and screw fastenings, and includes a flush-mounted insert with mounting plate. This dual mounting flexibility offers fast, vibration-resistant assembly and compatibility with a wide range of enclosures, reducing install time on complex panels. The rocker actuator is a single, 1-pole, two-way switch with screwless terminals. This delivers reliable contact performance while enabling quick wiring and easier repair, lowering field fault rates in industrial cabinets. Illumination can be added via a separate illumination set powered by the connected load. This enables proactive status indication without requiring separate power feeds, improving operator visibility and energy efficiency. Protection and compliance are built in: IP20 dust protection, CE declaration, RoHS/REACH compliance, and WEEE categorization. For procurement, this reduces compliance overhead and support audits. Dimensions and weight are compact: 71 mm x 71 mm face, 40 mm depth, 60 g weight, with a built-in depth t2 of 25 mm. This compact footprint fits densely packed control panels and supports scalable modular designs. Design Range compatibility includes Busch-Duro 2000 SI, Reflex SI, future linear, alpha, and related lines, ensuring visual and tactile consistency across panel families. Electrical rating is 250 V and 10 A, suitable for standard industrial loads while maintaining a robust, vibration-resistant operation. These features support reliability, ease of installation, and long-term cost efficiency for panel builders and system integrators.
Get a Quick Quote for a ABB 2CKA001012A1143
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001012A1143?
Enquire Now
FAQs
This switch insert supports flush-mounted installation with mounting plate and offers mounting with claw or screw fastenings. The dual mounting capability simplifies installation in a variety of enclosures, reduces field wiring time, and improves vibration resistance in industrial panels.
Yes. The device is rated for 250 V and supports a rated current of 10 A. It uses a two-way switch configuration with a single rocker actuator, making it suitable for standard control panels and low- to medium-load switching tasks.
Illumination is optional and can be added via a compatible illumination set. The illumination is powered by the connected load, ensuring status indication without requiring a separate power feed in many panel configurations.
The product carries IP20 protection, CE conformity, RoHS compliance, and REACH declarations. It is also associated with WEEE category 5 for small equipment, supporting safe disposal and regulatory reporting across regions.
Choose flush-mounted installation with the included mounting plate and use screwless terminals to minimize wiring time. The compact 71x71 mm footprint and 25 mm built-in depth fit tightly packed panels, while the 10 A/250 V rating supports common automation loads without overdesign.
