ABB 2CKA001012A1150 Flush Mounted Inserts - CE
Part Number: 2CKA001012A1150
Quick Summary
ABB 2CKA001012A1150 Flush Mounted Inserts deliver reliable control with dual rocker switches for compact panels. Engineers often face space constraints and messy wiring in control cabinets, which can slow installation and raise error rates. This module ships with CE and UKCA declarations and RoHS/REACH compliance, and it carries an IP20 rating for safe use inside enclosures. Designed for compatibility with major ABB design ranges, it offers screwless terminals, a 250 V rating, and 10 A per circuit, enabling faster commissioning and greater fault tolerance. By combining a compact footprint with robust construction, it supports efficient, scalable control solutions and reduces total cost of ownership for panel builders and end users.
Product Information
Extended Description

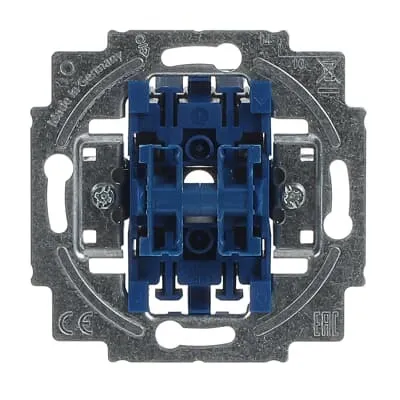

2CKA001012A1150 ABB: Neon lamp 8338-1 as orientation light can be added from the back of the switch insert.
The Illumination set is powered by the connected load.
Suitability and maximum current for Illumination sets by the connected load must be ensured.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Rocker Switches
2
Wiring Configuration
Series switch
Actuator Type
Rocker/button
Illumination
Optional
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2000/5 US-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
0231ccc7-f5c4-4281-973b-228f5e85e815 Germany (DE)
Simplified SCIP
0231ccc7-f5c4-4281-973b-228f5e85e815 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/5 US-500
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] 2000_5 US-500
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature: Flush Mounted inserts with mounting plate sit flush against the panel face, creating a neat, space-saving footprint. Business impact: Reduces panel depth, improves operator access, and minimizes dust capture in tight enclosures. Application: Ideal for compact control panels in machinery and process equipment. Feature: Two independent rockers with series wiring and screwless terminals. Business impact: Speeds field installation, reduces wiring errors, and simplifies future maintenance. Application: Suitable for two-gang control circuits in machine panels. Feature: Optional illumination using the back-powered Neon lamp 8338-1. Business impact: Provides orientation lighting without extra wiring, improving visibility in dim environments. Application: Status indication for start/stop or lighted indicators. Feature: IP20 protection and robust materials (Thermoplastic/Duroplast). Business impact: Safe inside indoor electrical cabinets and harsh industrial environments. Application: Panel mounting in control rooms and manufacturing lines; compact built-in depth of 25 mm complements 71x71 mm faceplates. Feature: Compliance with RoHS, REACH, SCIP, and WEEE plus CE/UKCA declarations. Business impact: Reduces regulatory risk, simplifies audits, and supports sustainable lifecycle management. Application: Suitable for OEM panel assemblies across ABB design ranges such as Platform 63, Busch-Duro 2000 SI, and Reflex SI.
Get a Quick Quote for a ABB 2CKA001012A1150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001012A1150?
Enquire Now
FAQs
This flush-mounted insert is designed for panel-face mounting with a mounting plate and supports both claw and screw fastening. It fits a 71 mm x 71 mm opening, sits flush for a clean aesthetic, and uses screwless terminals for quick, reliable wiring. Built-in depth is 25 mm, with overall depth of 40 mm, making it suitable for compact control panels in machine enclosures.
The device is rated for 250 V and 10 A per circuit, with two rockers arranged in a 2-gang configuration and a series wiring option. It supports load types up to 100 W for illumination sets and is compatible with standard control circuits in industrial panels. Ensure connected loads are within these limits to maintain safety and performance.
Illumination is optional and can be added via a back-mounted Neon lamp 8338-1. The illumination set is powered by the connected load, so you must ensure your load provides sufficient power without exceeding the 100 W capacity for lighting. This feature improves orientation in low-light environments without extra wiring harnesses.
The insert carries CE and UKCA declarations, is RoHS compliant, and adheres to REACH requirements with documented declarations. It also aligns with SCIP and WEEE guidelines, supporting responsible sourcing, end-of-life recovery, and regulatory audits for European and UK deployments.
Screwless terminals reduce assembly time and the risk of loose connections, enhancing reliability in vibration-prone environments. The 2-gang design, flush mounting, and compatibility with ABB design ranges like Busch-Duro 2000 SI and Reflex SI streamline integration into existing panel ecosystems, lowering commissioning time and total cost of ownership for OEMs and integrators.
