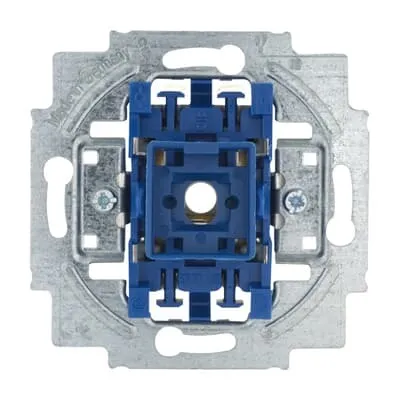

ABB 2CKA001012A1168 Flush Mounted Inserts - IP20
Part Number: 2CKA001012A1168
Quick Summary
2CKA001012A1168 is a flush-mounted insert that provides a 10 A intermediate switch for panel control in enclosures. Engineers often contend with cramped wiring, limited accessibility, and time-consuming maintenance in compact control cabinets. This ABB module carries CE conformity, RoHS compliance, REACH declarations, and an IP20 rating to withstand typical indoor panel environments. Its screwless terminals and optional illumination support faster wiring, safer servicing, and clearer status indication, while the robust design and design-range compatibility enable scalable, cost-efficient automation in industrial panels.
Product Information
Extended Description
2CKA001012A1168 ABB: Can be illuminated by using a Illumination set as an accessory.
The Illumination set is powered by the connected load.
Suitability and maximum current for Illumination sets by the connected load must be ensured.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Rocker Switches
1
Wiring Configuration
Intermediate switch
Actuator Type
Rocker/button
Illumination
Optional
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2000/7 US-506
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/7 US-506
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature: Wiring configuration uses an intermediate switch to support two-way control with a single insert. Business Impact: reduces wiring complexity and panel depth, shortening commissioning time. Application: ideal for lighting circuits and control logic in compact machine enclosures. Feature: Rated voltage and current set to 250 V and 10 A. Business Impact: supports common industrial loads up to 100 W in lighting and control circuits, improving reliability and limiting the need for extra components. Application: panel assemblies for machines and processes requiring robust low-voltage interlocks. Feature: Illumination option with illumination set compatible accessories. Business Impact: provides visual status and easier maintenance without added wiring complexity. Application: panel environments with variable lighting or low-light maintenance needs. Feature: Screwless terminals and 1 rocker switch (actuator type: rocker/button). Business Impact: speeds field installation, reduces loosened connections, and simplifies replacement. Application: rapid commissioning in control panels using ABB modular platforms. Feature: IP20 protection and compact dimensions (71 x 71 x 40 mm, 60 g). Business Impact: protects internal contacts from accidental contact and dust, while saving space in crowded control cabinets. Application: indoor, cabinet-mounted automation enclosures using Busch-Duro/Reflex design ranges.
