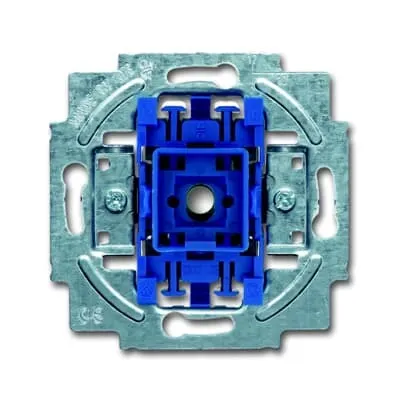

ABB 2CKA001012A1598 Insert Two-way switch 10 A - IP20
Part Number: 2CKA001012A1598
Quick Summary
ABB 2CKA001012A1598 is an insert two-way switch rated 10 A for compact panel and cabling installations. Engineers often struggle with cramped spaces and modular compatibility; this flush-mounted unit streamlines installation with flexible mounting options. It carries IP20 protection for indoor use, CE conformity, and RoHS/REACH compliance to meet European environmental and safety standards. The design also supports screwless terminals and an optional illumination set, which helps reduce wiring time and improve operator feedback in low-light environments. For integrators, the combination of a reliable rocker switch, two-way wiring configuration, and broad compatibility with Busch-Duro and Reflex faceplates translates to lower replacement cycles and smoother maintenance in production lines.
Product Information
Extended Description
2CKA001012A1598 ABB: Can be illuminated by using a Illumination set as an accessory.
The Illumination set is powered by the connected load.
Suitability and maximum current for Illumination sets by the connected load must be ensured.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw | Without Claw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Actuator Type
Rocker/button
Illumination
Optional
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2000/6 USR-503
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/6 USR-503
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature: Flush Mounted mounting type and alternative screw-based fastening options enable a clean, space-efficient install. Benefit: Improves panel aesthetics and reduces enclosure depth, enabling easier retrofits in tight control cabinets. Application: Control panels in packaging, machine tools, and conveyors. Long-tail keywords: flush-mounted switch, panel integration, compact control cabinet. Feature: Two-way wiring configuration and a single rocker switch with 1 rockers. Benefit: Simplifies wiring diagrams and minimizes miswiring risk, supporting reliable bidirectional control in lighting and signaling applications. Application: Industrial lighting control, orientation functions, and process indicators. Long-tail keywords: two-way switch, rocker switch, wiring configuration. Feature: Screw terminals (screwless option) speed up installation and reduce torque-related wiring errors. Benefit: Cuts commissioning time and improves connection reliability in high-vibration environments. Application: Field wiring in ABB and Busch-Duro faceplates. Long-tail keywords: screw terminals, screwless terminals, field wiring. Feature: Illumination option compatible with the accessory illumination set powered by the connected load. Benefit: Immediate operator feedback and reduced maintenance checks for lit status in dim environments. Application: Machine panels in automation cells. Long-tail keywords: illumination set compatibility, status indication, panel lighting. Feature: Electrical ratings of 250 V and 10 A with LED-compatible power rating (LEDi / CFLi 100 W). Benefit: Handles standard control and indicator loads with margin for future upgrades. Application: Lighting and control circuits in industrial equipment. Long-tail keywords: 250 V rated voltage, 10 A current, 100 W load. Feature: Broad design-range compatibility across multiple faceplates (Busch-Duro 2000 SI, Reflex SI, alpha, etc.). Benefit: Reduces part proliferation and simplifies procurement for multi-line installations. Application: Modular switch ecosystems in manufacturing lines. Long-tail keywords: Busch-Duro 2000 SI compatibility, Reflex SI compatibility, design range. Feature: Compliance and environmental integrity with CE, RoHS, REACH and WEEE classification. Benefit: Simplifies regulatory clearance and supports sustainable manufacturing. Application: All sectors adhering to EU environmental standards. Long-tail keywords: CE conformity, RoHS compliance, REACH information, WEEE category.
Get a Quick Quote for a ABB 2CKA001012A1598
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001012A1598?
Enquire Now
FAQs
The 2CKA001012A1598 supports flush-mounted installation and mounting with screw or without claw options, enabling tidy panel integration. This reduces cabinet depth and allows quicker wiring with screw terminals when needed, while flush mounting improves accessibility for routine maintenance and inspection in automation panels.
This insert two-way switch is rated for 250 V and 10 A, with a 100 W load rating for LED or CFL illumination if used. It supports two-way wiring and is compatible with standard lighting and control circuits in industrial environments, ensuring reliable operation without overloading the module.
Yes. The device features a two-way wiring configuration and a single rocker switch, making it suitable for controlling lighting circuits in control panels. When paired with the optional illumination set, operators receive clear status feedback while maintaining safe, compact wiring.
The switch complies with CE and RoHS directives, and REACH information confirms no substances above threshold levels. It is rated IP20 for indoor use, enhancing safety in industrial environments, and aligns with WEEE requirements for responsible end-of-life handling.
The optional illumination, screwless terminal option, and robust IP20-rated design reduce wiring errors and maintenance time. Its compatibility with common faceplates like Busch-Duro 2000 SI and Reflex SI lowers part variety and replacement cycles, delivering lower total cost of ownership and a faster time-to-market for automation projects.
