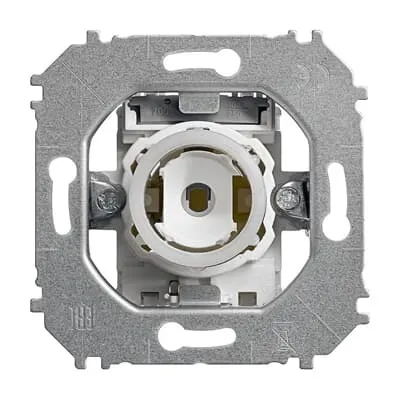

ABB 2CKA001012A1614 Switch Insert - 10 A, IP20
Part Number: 2CKA001012A1614
Quick Summary
ABB 2CKA001012A1614 Switch Insert is a compact, flush-mounted two‑way switch designed for impuls cover plates in control panels. Engineers often struggle with bulky inserts that misalign with panel cutouts or loosen under vibration. This model carries CE conformity, RoHS and REACH declarations, and IP20 protection, supporting regulatory compliance and safer operation. Its small footprint, robust thermoplastic housing, and matte finish ease installation and panel density. With a 250 V rating and 10 A switching capacity, it reliably handles common automation loads while keeping wiring simple. The design also accommodates screwless terminals, which reduces wiring time and helps maintain a clean, maintenance-friendly panel.
Product Information
Extended Description
2CKA001012A1614 ABB: Suitable for impuls cover plate with operating knob.
Wiring Diagram
Connection diagramm [EN] 2001_6u_ a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Actuator Type
Rocker/button
Illumination
Non-illuminated
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
impuls
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
45 mm
Product Net Weight
69 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2001_6u
RoHS Information
Product Declaration.PDF [EN] 2001/6 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2001/6 U
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature: Flush-mounted mounting with claw or screw fastening supports dense panel layouts. Business Impact: improves mechanical stability in vibration-prone machinery and reduces field adjustments. Application: ideal for impuls cover plates in compact control panels. Feature: Electrical ratings of 250 V and 10 A with a single two-way rocker switch. Business Impact: enables safe operation of typical automation loads and simplifies circuit design. Application: suitable for lighting and control logic in machinery enclosures. Feature: Screwless terminals for straightforward wiring. Business Impact: reduces installation time and minimizes risk of loose connections. Application: panel builders seeking rapid, robust wiring. Feature: Thermoplastic body with matte finish. Business Impact: durable, heat-resistant, easy to clean, and RoHS compliant. Application: exposed panels in production environments. Feature: IP20 protection and compliance (RoHS, REACH, WEEE). Business Impact: supports safe operation in standard indoor spaces and simplifies regulatory audits. Application: CE-conformant equipment across manufacturing sectors. Feature: Built-in depth of 32 mm and 71 x 71 mm footprint. Business Impact: enables compact, flush panel integration and tidy aesthetics. Application: space-saving inserts for control consoles in compact machines.
