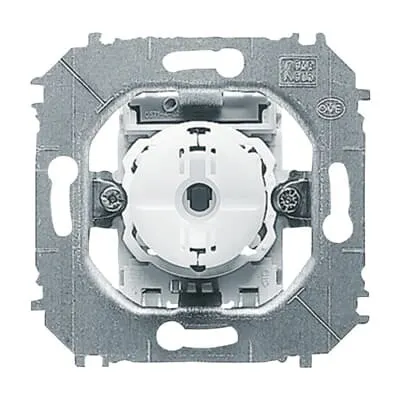

ABB 2CKA001012A1630 Switch Insert - IP20
Part Number: 2CKA001012A1630
Quick Summary
ABB 2CKA001012A1630 Switch Insert is an intermediate switch designed for impuls cover plates in control panels. Engineers often contend with cramped spaces and wiring uncertainty, which can slow commissioning and raise error risk. It carries CE conformity and RoHS/REACH compliance, plus IP20 protection for indoor environments. The flush‑mounted design, mounting on claws or screws, and the screwless terminals help accelerate installation while maintaining reliability. With a compact 71 mm square footprint and a straightforward 1‑rocker configuration, it supports efficient panel design and predictable maintenance costs.
Product Information
Extended Description
2CKA001012A1630 ABB: Suitable for impuls cover plate with operating knob.
Wiring Diagram
Connection diagramm [EN] 2001_6u_ f
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Number of Rocker Switches
1
Wiring Configuration
Intermediate switch
Actuator Type
Rocker/button
Illumination
Non-illuminated
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
impuls
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
45 mm
Product Net Weight
69 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2001_6u
RoHS Information
Product Declaration.PDF [EN] 2001/7 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2001/7 U
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature → Business Impact → Application: Wiring Diagram clarity from EN 2001_6u f reduces miswiring during initial wiring and commissioning, delivering faster startup and fewer field corrections in automation panels. This supports installation switches in tight control enclosures and minimizes on-site troubleshooting time. Application: impuls control panels and compact control stations where reliable signal routing is critical. Feature → Business Impact → Application: IP20 protection and rated 250 V / 10 A rating ensure safety and compatibility with indoor electrical environments, enabling engineers to specify a single part for general-purpose interlocking and control tasks. Application: standard machine panels and enclosure interiors where dust ingress must be minimized. Feature → Business Impact → Application: 1 rocker, non-illuminated actuator with screwless terminals reduces wiring effort and potential loose connections, cutting installation time and service intervals. Application: high‑volume panel builds in manufacturing lines seeking repeatable electrical performance. Feature → Business Impact → Application: Mounting Type Flush Mounted with optional claw or screw fastening delivers flexible installation in a range of impuls cover plates and enclosures, improving layout efficiency and reducing design constraints. Application: retrofit and new builds across automation projects. Feature → Business Impact → Application: Thermoplastic material and Untreated | Matt surface finish provide cost-effective durability suitable for indoor environments while keeping panel aesthetics clean. Application: obsolete panel refurbishments and new equipment where appearance and durability matter. Feature → Business Impact → Application: RoHS and REACH declarations, WEEE categorization, and CE conformity ensure regulatory compliance and end-of-life planning, reducing risk in procurement and downstream sustainability reporting. Application: global roll-outs and supplier audits in regulated industries.
