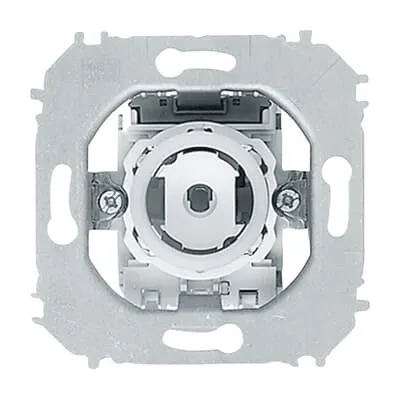

ABB 2CKA001012A1705 Switch insert - Two-way push, IP20
Part Number: 2CKA001012A1705
Quick Summary
ABB 2CKA001012A1705 switch insert is a 1P+N illuminated push button for flush-mounted industrial controls. Engineers often struggle with wiring compatibility and panel real estate in tight control cabinets. CE conformity, RoHS compliance, and REACH declarations support regulatory compliance across markets, while IP20 protection helps guard against dust in standard enclosures. The N-terminal design and mounting with claw or screws speed installation and reduce wiring errors, boosting panel efficiency. For OEMs and service teams, this part delivers consistent illumination, dependable operation, and easy diagnostics, keeping downtime to a minimum. In addition to the primary function, it complements ABB automation ecosystems and supports cost-effective upgrades in modern control panels.
Product Information
Extended Description
2CKA001012A1705 ABB: Illuminable. Suitable for impuls cover plate with operating knob. With N terminal.
Wiring Diagram
Connection diagramm [EN] 2021_6uk_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Number of Poles
1P+N
Number of Rocker Switches
1
Wiring Configuration
Two-way push switch with N
Actuator Type
Push button
Product Type
with N-terminal
Rated Voltage (Ur)
24 V
Rated Current (In)
10 A
Number of Contacts CO
1
Design Range
impuls
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
45 mm
Product Net Weight
64 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2001_6u
RoHS Information
Product Declaration.PDF [EN] 2021/6 UNV
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2021/6 UNV
ETIM 9
EC000029 - Push button
eClass
V11.0 : 27144044
Feature: Illuminated 1P+N push button with N-terminal wiring. Benefit: Improves status visibility and reduces misoperation in busy control environments. Application: Ideal for flush-mounted control panels in manufacturing equipment. Feature → Business Impact → Application: 24 V, 10 A rating with 1 CO contact supports typical motor and logic circuits, delivering reliable actuation with minimal wiring complexity. Application: Machinery control circuits and panel-mounted controls. Feature: IP20 protection increases reliability in indoor dry environments, reducing maintenance calls. Application: Dry factory floors and enclosures. Feature: Mounting with claw or screw provides flexible installation, saving time during retrofits or new builds. Application: Ready for quick field upgrades and OEM panel lines. Feature: Thermoplastic construction with a compact 71 x 71 mm footprint and 32 mm built-in depth minimizes space intrusion while maintaining durability. Application: Slim, robust inserts for compact control panels. Feature: Compliance with RoHS, REACH, and CE declarations ensures global-market readiness and sustainability. Application: Global manufacturing and regulated industries. The combination of illumination, compact footprint, and flexible mounting supports faster installation, lower total cost of ownership, and reduced panel real estate while preserving regulatory compliance.
