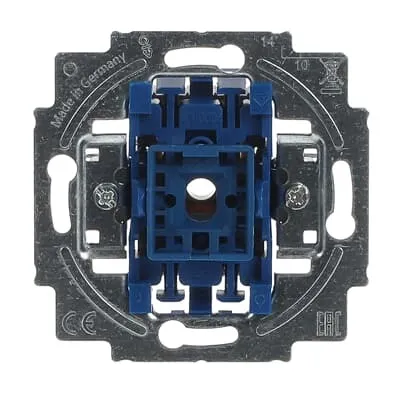

ABB 2CKA001012A2034 Off switch 2-pole 10 A - IP20
Part Number: 2CKA001012A2034
Quick Summary
ABB 2CKA001012A2034 Off switch 2-pole 10 A provides reliable control for industrial control panels and machine enclosures. Engineers frequently face wiring safety challenges, cluttered layouts, and the need for clear visibility in low-light panel zones. This insert carries CE conformity, RoHS and REACH declarations, plus IP20 protection, ensuring safe, regulation-compliant operation. Coupled with its flush-mounted design and optional illumination, it reduces installation time and improves maintenance efficiency in automation assemblies.
Product Information
Extended Description
2CKA001012A2034 ABB: Can be illuminated by using a Illumination set as an accessory.
Wiring Diagram
Connection diagramm [EN] 2601_2agal_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Control and orientation
Number of Rocker Switches
1
Wiring Configuration
Off switch 2-pole
Actuator Type
Rocker/button
Illumination
Optional
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
Dimension Diagram
Dimension drawing [EN] m_2020usgl
RoHS Information
Product Declaration.PDF [EN] 2000/2 US
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/2 US
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature: The switch offers a 250 V, 10 A rating, enabling safe disconnection of both live and neutral lines. Business Impact: This reduces arc exposure and helps meet safety standards in machine automation. Application: Suitable for control panels and equipment enclosures in manufacturing lines. Feature: Flush Mounted mounting with a mounting plate, with optional mounting via claw or screws. Business Impact: Delivers a neat, space-saving installation that speeds assembly and simplifies retrofits. Application: Ideal for compact control cabinets where panel depth is limited. Feature: Illumination options are available as an accessory. Business Impact: Improves visibility and orientation in dim environments, reducing operator errors during maintenance. Application: Panels requiring quick status recognition in dark or hazardous areas. Feature: Screwless terminals and a single rocker switch configuration. Business Impact: Speeds up wiring, minimizes loose connections, and enhances long-term reliability. Application: General automation panels with frequent servicing and rework. Feature: Design compatibility with ABB design ranges such as Busch-Duro 2000 SI and Reflex SI; 71 mm square face and 25 mm built-in depth. Business Impact: Facilitates plug-and-play integration across multiple ABB frames, reducing engineering time. Application: New installations and panel upgrades across automotive, packaging, and process industries. Feature: Material options (Thermoplastic or Duroplast) and IP20 protection. Business Impact: Balances cost and durability for indoor electrical enclosures while meeting environmental requirements. Application: Indoor control panels in manufacturing environments requiring basic ingress protection and cleanability.
Get a Quick Quote for a ABB 2CKA001012A2034
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001012A2034?
Enquire Now
FAQs
Wiring should follow the EN 2601_2agal_a diagram. Use the screwless terminals to connect the two poles of the circuit, ensuring a secure, short path to minimize resistance. Mount the insert flush with the panel using the recommended mounting plate, and verify the wiring configuration is set to Off when powering down for maintenance.
The switch is rated for 250 V and 10 A, suitable for typical control circuits in automation and machine enclosures. Use it in indoor, panel-mounted applications requiring two-pole disconnection and safe isolation during servicing, particularly in ABB frame systems like Busch-Duro 2000 SI and Reflex SI.
Illumination is optional and can be added via an accessory illumination set. This enables better visibility for panel status in low-light conditions, aiding operator accuracy during start-up checks and routine maintenance in industrial environments.
This insert is designed for ABB modular frames and is compatible with major ranges such as Busch-Duro 2000 SI, Reflex SI, and related Allwetter and linear variants. The flush-mounted insert with mounting plate ensures seamless integration across multiple ABB families.
The product carries CE conformity, RoHS and REACH declarations, and WEEE category information. It is IP20 protected, designed for indoor use in compliant automation installations, and complies with related environmental and safety standards.
