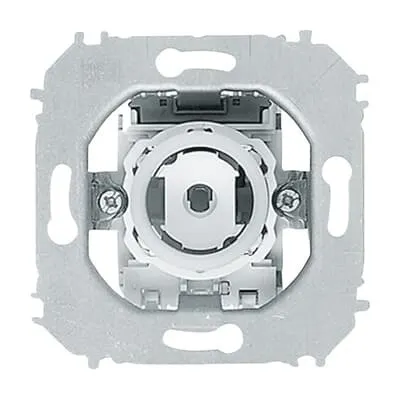

ABB 2CKA001012A2069 Switch Insert - IP20
Part Number: 2CKA001012A2069
Quick Summary
ABB 2CKA001012A2069 Switch Insert is a flush-mounted 1P push button with a feedback-signal contact for panel control in industrial machinery. Engineers often struggle with limited panel space and unreliable signaling in crowded control cabinets; this device addresses those challenges with compact form and clear feedback. The switch complies with CE declarations and RoHS/REACH requirements, and its IP20 rating suits indoor control panels, while optional illumination adds visibility in low-light environments. Designed for system integrators and maintenance teams, it delivers a reliable, easy-to-wire control solution that supports efficient panel design and reduced lifecycle costs. In short, it pairs compact dimensions with robust electrical specs to enhance automation efficiency and safety.
Product Information
Extended Description
2CKA001012A2069 ABB: Suitable for impuls cover plate with operating knob. With 2 independent signalling contacts. Illuminable.
Wiring Diagram
Connection diagramm [EN] 2021_6us-201
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Number of Poles
1P
Number of Rocker Switches
1
Wiring Configuration
Two-way push switch with Feedback-signal contact
Actuator Type
Push button
Illumination
Optional
Rated Voltage (Ur)
24 V
Rated Current (In)
10 A
Number of Contacts CO
1
Design Range
impuls
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
45 mm
Product Net Weight
65 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2001_6u
RoHS Information
Product Declaration.PDF [EN] 2021/6 UNV-201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2021/6 UNV-201
ETIM 9
EC000029 - Push button
eClass
V11.0 : 27144044
Feature → Business Impact → Application: 1P switch with 1 CO contact rated at 24 V and 10 A provides robust, clean actuation for start/stop and signaling circuits, reducing wiring complexity and improving signal integrity in machine controls. This translates to lower failure rates and faster commissioning in packaging lines, tooling cells, and conveyance systems. Feature → Business Impact → Application: Two-way push switch with a feedback-signal contact delivers real-time status indication to control logic, improving operator awareness and preventing misoperation in busy panels. Use this in safety interlocks and process-control stations to achieve higher uptime and safer machine operation. Feature → Business Impact → Application: Flush-mounted mounting type with claw or screw fastening enables quick installation without protruding hardware, saving panel space and reducing assembly time in cabinet-based automation. Feature → Business Impact → Application: Illumination is optional, offering visual feedback for low-light environments and high-contrast panel indication, which enhances reliability in night-shift operations and maintenance checks. Feature → Business Impact → Application: Thermoplastic material with RoHS and REACH compliance ensures regulatory alignment and durable, impact-resistant construction for standard indoor use across manufacturing lines. Feature → Business Impact → Application: Compact dimensions (71 mm square, 45 mm depth, 32 mm built-in depth) and 65 g weight simplify integration into dense panels and retrofit projects on existing machines, improving design flexibility and reducing enclosure footprint.
