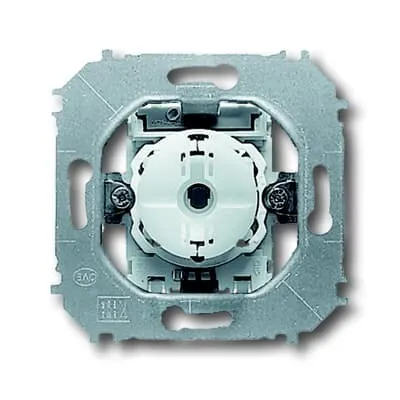

ABB 2CKA001012A2109 Flush Mounted Two-Way Switch - CE
Part Number: 2CKA001012A2109
Quick Summary
ABB 2CKA001012A2109 is a flush mounted two-way switch for compact control panels. Engineers often struggle with reliable, space-efficient switches that install quickly without complex wiring. This device complies with CE conformity, RoHS, and REACH, and carries an IP20 rating to ensure safe operation in standard enclosures. With screwless terminals and a rugged thermoplastic housing, it offers easy wiring, robust mounting, and long service life—helping projects meet schedules and budgets. For panel builders and maintenance teams, the result is a more predictable installation process and lower total cost of ownership without compromising performance.
Product Information
Extended Description
2CKA001012A2109 ABB: Suitable for impuls cover plate with operating knob.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Actuator Type
Rocker/button
Illumination
Non-illuminated
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
impuls
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
45 mm
Product Net Weight
69 g
Built-In Depth (t2)
32 mm
RoHS Information
Product Declaration.PDF [EN] 2001/6 U-507
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2001/6 U-507
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature → Business Impact → Application: Flush Mounted mounting type reduces panel depth and improves aesthetics while preserving accessibility for panels with impuls cover plates. This enables tighter control enclosures and faster field integration in automation cabinets. Feature → Business Impact → Application: Mounting with claw or screw provides installation flexibility across diverse panel designs, reducing accessory inventory and enabling rapid swaps during commissioning. Feature → Business Impact → Application: IP20 protection delivers reliable operation in typical indoor industrial environments, minimizing contamination risk and extending service intervals in factory settings. Feature → Business Impact → Application: One rocker switch with screwless terminals simplifies wiring, lowers risk of loose connections, and shortens wiring time on multi-channel panels. Feature → Business Impact → Application: Rated 250 V and 10 A supports standard automation loads, helping projects stay within safety margins while accommodating LED/CFL task lighting up to 100 W. Feature → Business Impact → Application: Non-illuminated actuation reduces power draw and avoids unnecessary light emission in control rooms, aligning with energy-management policies. Feature → Business Impact → Application: Thermoplastic construction provides rugged yet lightweight housings suited for field replacements and modular panel upgrades, improving lifecycle planning. Feature → Business Impact → Application: RoHS and REACH compliance, along with WEEE categorization, mitigate regulatory risk and support sustainable end-of-life handling in industrial environments. With ETIM and eClass alignment, procurement and specification workflows remain streamlined for engineers and buyers.
Get a Quick Quote for a ABB 2CKA001012A2109
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001012A2109?
Enquire Now
FAQs
The device is designed for flush mounted installation with mounting via claw or screw, enabling flexible fitment across various enclosure designs and minimizing panel intrusion.
This switch operates at 250 V and 10 A, supports a two-way wiring configuration, and is rated IP20 for indoor use, suitable for non-harsh industrial environments.
Yes. The design range is impuls, and the two-way wiring configuration supports 1 rocker switch for simple, reliable control within impuls-capable panels.
The switch carries CE conformity, RoHS compliance, REACH information, and WEEE categorization, with associated declarations and documentation for safe, compliant deployment in industrial facilities.
Screwless terminals speed wiring and reduce loosened connection risk, while the compact, lightweight thermoplastic housing simplifies replacements and upgrades, delivering faster commissioning and lower lifecycle costs.
