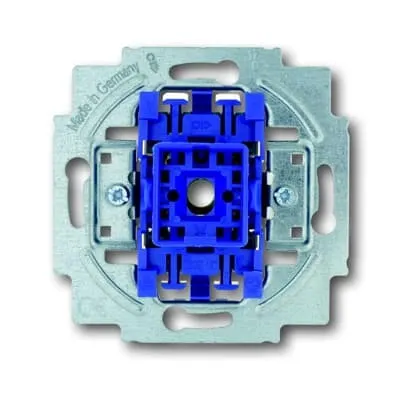

ABB 2CKA001012A2131 Flush Mounted Inserts Off Switch 1-Pole 10 A - IP20
Part Number: 2CKA001012A2131
Quick Summary
ABB 2CKA001012A2131 flush mounted insert switches off loads in control panels, delivering a compact, space-saving solution for machine builders and panel shops. When panel real estate is at a premium, this unit provides reliable operation without compromising aesthetics. The Illumination option offers visual status cues without additional wiring, powered by the connected load. This device is designed for easy mounting with claw or screw fastening and includes a mounting plate for fast, reproducible installations. It carries CE conformity, RoHS compliance, and REACH declarations, reinforcing safe, regulatory-compliant deployments in industrial environments. Using ABB's modular design helps reduce wiring complexity and streamline maintenance, while the 1-pole, 10 A rating supports common control circuits. Overall, it delivers dependable control with scalable integration into standard control cabinet architectures.
Product Information
Extended Description
2CKA001012A2131 ABB: Can be illuminated by using a Illumination set as an accessory.
The Illumination set is powered by the connected load.
Suitability and maximum current for Illumination sets by the connected load must be ensured.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Rocker Switches
1
Wiring Configuration
Off switch 1-pole
Actuator Type
Rocker/button
Illumination
Optional
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Basic55
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2000/1 US-507
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/1 US-507
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature: Flush Mounted design for a clean panel appearance and minimal depth. Business Impact: Frees up valuable enclosure space and simplifies panel aesthetics, enabling compact control cabinets and easier heat management. Application: Ideal for machine builders and panel shops needing neat installations without protruding components. Feature: Mounting with Claw or Screw provides installation flexibility. Business Impact: Reduces mounting time and allows reuse of mounting plates across multiple enclosures, improving installation speed and reducing part variety. Application: Suitable for both new builds and retrofits in industrial automation panels. Feature: Optional Illumination set powers via the connected load. Business Impact: Delivers immediate visual feedback without extra wiring or power supplies, lowering wiring costs and fault points. Application: Status indication on control panels and AI/automation cabinets. Feature: 1 Poles Rocker/Button and Off Switching Configuration. Business Impact: Straightforward control logic simplifies wiring diagrams and reduces potential miswiring, improving reliability in automation loops. Application: Standard 1‑pole control circuits in machines and conveyors. Feature: Screwless Terminals and 250 V / 10 A rating with IP20 protection. Business Impact: Quick, secure terminations with robust electrical safety, reducing field service calls and enhancing compliance with industrial standards. Application: General purpose panel switches in harsh or space-constrained environments. Feature: Compliance and Material Virtues (CE, RoHS, REACH). Business Impact: Lowers regulatory and sustainability risk, easing audits and supplier qualification. Application: Any factory floor or machine integration requiring regulatory alignment and traceability.
Get a Quick Quote for a ABB 2CKA001012A2131
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001012A2131?
Enquire Now
FAQs
Installation begins with selecting the mounting method—either claw or screw fastening—and attaching the included mounting plate. Align the flush-mounted insert within the panel cutout, secure with the chosen fastener, and connect the screws on the screw terminals to the circuit. The unit supports a single-pole off switch configuration and can accept optional illumination accessories to indicate status.
The device is rated for 250 V and 10 A, suitable for typical control circuits in automated machinery. With IP20 protection, it provides basic ingress protection for indoor panel environments. The screwless terminals simplify wiring while maintaining secure terminations, and the 100 W maximum illumination capability (LED/CFL) is supported when using the dedicated illumination accessory, ensuring safe, predictable operation.
Illumination is optional and can be activated via a compatible illumination set powered by the connected load. This means no separate power feed is required for the indicator, reducing wiring complexity. When used, confirm load compatibility to ensure the illumination does not exceed the connected circuit's current rating and remains compliant with panel controls.
This product carries CE conformity, RoHS compliance, and REACH declarations, with WEEE categorization for small equipment. It is designed for safe operation in industrial environments and aligns with ETIM EC001590 and eClass V11.0 classifications, helping with procurement, audits, and vendor qualification processes.
The flush-mounted design saves panel space, reduces wiring complexity, and speeds installation with a mounting plate compatible with claw or screw fasteners. The 1-pole off-switch configuration supports standard control logic, while optional illumination improves operator awareness. Combined with robust compliance, it lowers downtime, streamlines maintenance, and enhances overall line efficiency.
