ABB 2CKA001012A2194 Flush Mounted Inserts - IP20
Part Number: 2CKA001012A2194
Quick Summary
Flush Mounted Inserts with neon orientation lamp are compact, front-lit switches for control panels in industrial environments. Engineers often battle cluttered front panels and inaccessible lamp maintenance in crowded control enclosures. The ABB unit carries CE, RoHS, and REACH declarations and an IP20 rating for safe indoor operation. Its modular insert with screwless terminals reduces wiring time, while front-lamp replacement minimizes maintenance downtime. In practice, this design enables faster panel commissioning, clearer status indication, and lower total cost of ownership. Compatible with a broad range of ABB and third‑party panel ranges, it supports two-way wiring, 10 A at 250 V, and orange illumination for unmistakable orientation.
Product Information
Extended Description

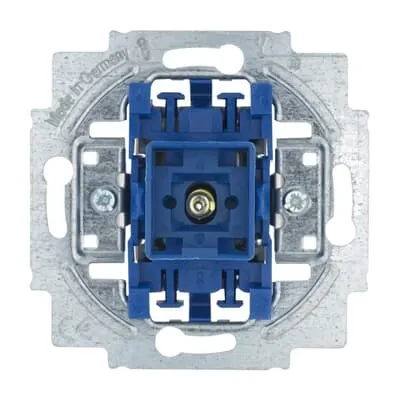

2CKA001012A2194 ABB: With neon lamp 8352 as orientation light.
Lamp can be changed from the front of the switch insert.
The Illumination set is powered by the connected load.
Suitability and maximum current for Illumination sets by the connected load must be ensured.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Actuator Type
Rocker/button
Lamp Type
Neon lamp
Illumination
Illuminated
Lamp Color
Orange
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2000/6 USGL-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/6 USGL-500
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature → Business Impact → Application: The flush mounted design saves valuable panel depth and delivers a clean front facade while mounting with claw or screw and including a mounting plate speeds installation, reducing labor cost and rework in both new builds and retrofits. This aligns with OEM controls and field enclosures that require quick, reliable mounting on standard modular frames. IP20 protection ensures safe indoor operation on busy panels without demanding enclosure upgrades, supporting reliable performance in manufacturing lines and assembly stations. Two-way wiring and screwless terminals shorten wiring time, decrease fault potential from loose connections, and improve vibration resistance in demanding environments like packaging and material handling. The front-changeable neon lamp (orange) provides immediate orientation feedback, minimizing operator errors during startup checks or routine maintenance. Electrical ratings of 250 V and 10 A accommodate common control loads, while compatibility with design ranges such as Busch-Duro 2000 SI and Reflex SI enables seamless integration in multi-brand panel ecosystems. RoHS and REACH compliance plus CE declarations simplify procurement and regulatory adherence for international projects.
