ABB 2CKA001012A2196 Flush Mounted Inserts - IP20
Part Number: 2CKA001012A2196
Quick Summary
ABB 2CKA001012A2196 flush mounted inserts provide a 2-pole switch for compact control panels. In tight enclosures, space-saving mounting and simple wiring are essential, and this insert delivers both. The design is built for reliability and supports illumination as an accessory option for quick status indication in dimly lit panels. It carries CE and UKCA conformity, RoHS and REACH compliance, and is designed to meet WEEE disposal requirements, helping you stay compliant across markets. With screwless terminals and a compact footprint, it reduces wiring errors and speeds installation, while the included mounting plate simplifies mounting across ABB and compatible design ranges. This combination delivers safer operation and lower total cost of ownership for panel builders and OEMs.
Product Information
Extended Description
2CKA001012A2196 ABB: Can be illuminated by using a Illumination set as an accessory.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included

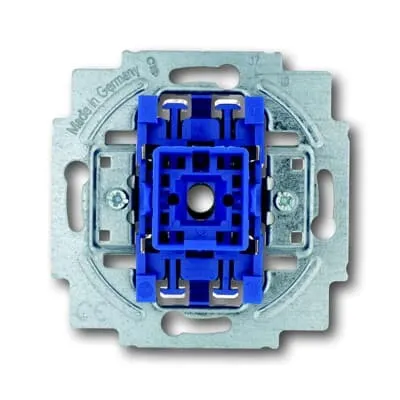

Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Control and orientation
Number of Rocker Switches
1
Wiring Configuration
2-pole switch
Actuator Type
Rocker/button
Illumination
Optional
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2000/2 US-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/2 US-500
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] 2000_2 US-500
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature: Flush Mounted Inserts with mounting plate included. Business Impact: compact panel footprint enables tighter enclosure layouts and easier access to wiring. Application: panel builders and machine builders can integrate this insert into control panels without compromising space or serviceability. Feature: 2-pole rocker switch with screwless terminals. Business Impact: reduces assembly time and minimizes loose connection risks, improving reliability in frequent operating cycles. Application: standard control circuits in automation panels and machine interfaces. Feature: Illumination is optional and compatible with a dedicated illumination set. Business Impact: enables quick status indication in low-light environments, aiding operator responsiveness and reducing misoperation. Application: panel indicators, safety panels, and process annunciation. Feature: Electrical ratings of 250 V and 10 A in a 2-pole configuration; IP20 protection. Business Impact: supports common industrial control voltages while maintaining enclosure ingress resistance. Application: motor control circuits, light control, and general automation switching. Feature: Durable materials and compact geometry; 71x71x40 mm footprint with 25 mm built-in depth and 60 g weight. Business Impact: lightweight yet robust for high-volume production and easy handling during installation. Application: modular machine enclosures and retrofits in existing panels. Feature: Regulatory compliance and design compatibility. Business Impact: ensures RoHS, REACH, WEEE, CE/UKCA conformity, and ETIM/eClass alignment, reducing compliance risk and speeding interoperability across supplier ecosystems. Application: cross-border deployments and multi-brand panel builds.
