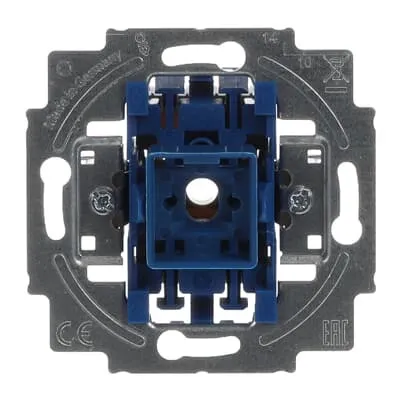

ABB 2CKA001012A2198 Switch Insert - IP20
Part Number: 2CKA001012A2198
Quick Summary
ABB 2CKA001012A2198 Switch Insert is a compact two-way switch designed for control panels and enclosure applications. Engineers often struggle with space constraints and wiring complexity in panel assemblies, but this unit’s flush-mounted design and screwless terminals streamline installation and reduce panel depth. It carries robust regulatory alignment, including CE and UKCA declarations, and IP20 protection for indoor environments, along with RoHS and REACH compliance to support global deployments. Designed for modular compatibility with Busch-Duro 2000 SI and related design ranges, it enables scalable panel upgrades and easy illumination accessory integration, improving maintenance efficiency and reducing total cost of ownership over time.
Product Information
Extended Description
2CKA001012A2198 ABB: Can be illuminated by using a Illumination set as an accessory.
The Illumination set is powered by the connected load.
Suitability and maximum current for Illumination sets by the connected load must be ensured.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Actuator Type
Rocker/button
Illumination
Optional
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2000/6 US-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/6 US-500
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] 2000_6 US-500
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature → Business Impact → Application: Flush Mounted Mounting Type enables a low-profile installation that preserves panel aesthetics while simplifying wiring management, reducing field labor time and rework in control cabinets. This translates to faster commissioning and lower risk of damage during assembly. Application: panel builders and electrical contractors seeking compact, neat switch inserts for clutter-free enclosures. Feature → Business Impact → Application: Two-way wiring with a single rocker switch delivers clear on/off control and reduced wiring complexity, improving diagnostic clarity in control circuits. Application: machine panels requiring reliable steering of 2-wire circuits with straightforward maintenance. Feature → Business Impact → Application: Increase option for Illumination set as an accessory powered by the connected load, enabling status indication without extra power supplies, which lowers installation cost. Application: control panels in dim environments where operator visibility matters. Feature → Business Impact → Application: Screwless terminals provide fast, secure connections with minimal torque variability, reducing termination errors and enhancing vibration resistance in industrial environments. Application: high-vibration machinery and compact enclosures. Feature → Business Impact → Application: IP20 protection and stainless-grade design options across multiple design ranges ensure compliance with indoor installation standards while enabling compatibility with Busch-Duro and Reflex SI families. Application: modular design upgrades and cross-product integration in large-scale automation projects. Feature → Business Impact → Application: RoHS/REACH compliance and WEEE categorization support sustainability programs and regulatory readiness. Application: global sourcing for multi-region deployments.
