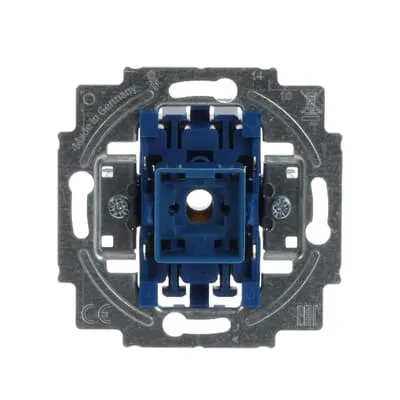

ABB 2CKA001012A2199 Flush Mounted Insert - IP20
Part Number: 2CKA001012A2199
Quick Summary
ABB 2CKA001012A2199 Flush Mounted Insert provides reliable intermediate-switch control for panel lighting and orientation indicators. In compact enclosures, installers often face wiring complexity and limited front access; this module streamlines mounting and reduces depth requirements. It carries CE and UKCA declarations with RoHS and REACH compliance, plus IP20 protection for dry indoor environments. Engineers and procurement professionals gain predictable performance with a 250 V, 10 A rating and optional illumination, enabling flexible, cost-efficient automation. Designed for durable operation in control panels, it supports screwless terminals for faster assembly and fewer loose connections. By combining compact footprint with standard ratings, it helps reduce panel size and procurement complexity while ensuring regulatory readiness.
Product Information
Extended Description
2CKA001012A2199 ABB: Can be illuminated by using a Illumination set as an accessory.
The Illumination set is powered by the connected load.
Suitability and maximum current for Illumination sets by the connected load must be ensured.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Orientation
Number of Rocker Switches
1
Wiring Configuration
Intermediate switch
Actuator Type
Rocker/button
Illumination
Optional
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2000/7 US-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/7 US-500
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] 2000_7 US-500
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Flush Mounted construction with an integrated mounting plate keeps the front of the panel clean and accessible, supporting compact enclosures and simplifying field installation by providing a ready-to-use mounting surface. This design delivers a robust mechanical fit for dense control cabinets and reduces the time needed to align and secure components during assembly. The result is improved reliability and a neater panel presentation for operators and maintenance teams. Mounting with both claw and screw options gives installers flexible fixation without redesigning enclosures, ensuring secure operation in a variety of panel thicknesses. The package includes a Flush Mounted Insert with Mounting Plate, streamlining installation and minimizing accessory sourcing, so procurement is predictable and fewer parts are misfiled in the shop floor.
