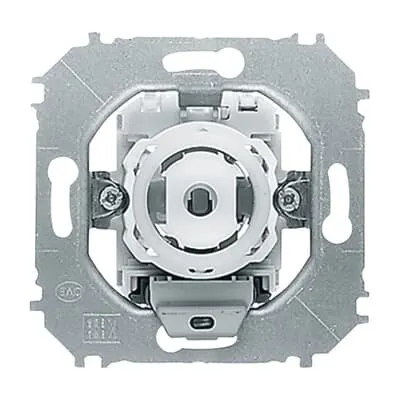

ABB 2CKA001022A0615 Switch insert - Neon lamp IP20
Part Number: 2CKA001022A0615
Quick Summary
ABB 2CKA001022A0615 Switch insert is a compact, two-way switch with a neon indicator for panel-mounted control. Engineers often struggle with clear status signals and tidy wiring in flush-mounted installs, which this unit helps simplify. It carries CE conformity for regulated markets, RoHS and REACH compliance for material safety, and IP20 protection for indoor environments. Designed to integrate with the impuls design range, it also supports easy mounting with claw or screw fastening, while the N-terminal lamp supply keeps the indicator powered with minimal wiring. This combination translates to faster installs, better operator visibility, and reduced risk of wiring errors in demanding electrical panels.
Product Information
Extended Description
2CKA001022A0615 ABB: With neon lamp. Suitable for impuls cover plate with operating knob.
Wiring Diagram
Connection diagramm [EN] 2001_6ukgl-101
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Function
Function lighting: Control and orientation
Number of Poles
1P+N
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Actuator Type
Rocker/button
Lamp Type
Neon lamp
Product Type
with N-terminal
Illumination
Illuminated
Lamp Color
Orange
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
impuls
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
45 mm
Product Net Weight
69 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2001_2ukgl-101
RoHS Information
Product Declaration.PDF [EN] 2001/6 UKGL-101
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2001/6 UKGL-101
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature → Business Impact → Application: The 1P+N configuration with a neon lamp provides a reliable status indication, improving operator decision-making and reducing misoperation in busy control rooms. Application: ideal for panel-mounted control points requiring a clear on/off signal in low-light environments. Feature → Business Impact → Application: Flush mounting with claw or screw fastening enables quick retrofits and consistent aesthetics across enclosures, lowering installation time and labor costs. Application: suitable for impuls cover plates with operating knobs in new builds or refurbishments. Feature → Business Impact → Application: Screwless terminals simplify wiring and improve connection reliability, cutting maintenance time and post-installation faults. Application: preferred in environments with vibration or frequent cycling. Feature → Business Impact → Application: 250 V, 10 A ratings align with typical control circuits, providing safe, compliant operation for lighting and signaling tasks. Application: supports reliable two-way switching in industrial panels. Feature → Business Impact → Application: IP20 protection offers basic ingress protection for indoor installations, reducing concern over dust ingress in control cabinets. Application: fits standard indoor electrical panels and storage environments. Feature → Business Impact → Application: N-terminal capability powers the neon indicator without complex harnessing, enabling clean wiring and predictable illumination patterns. Application: ideal for units that require continuous visibility of switch status. Feature → Business Impact → Application: Compact 71x71x45 mm footprint with a 32 mm built-in depth allows integration into tight impuls cover plates, minimizing panel cutouts and space usage. Application: useful in space-constrained control panels where aesthetics and accessibility matter.
