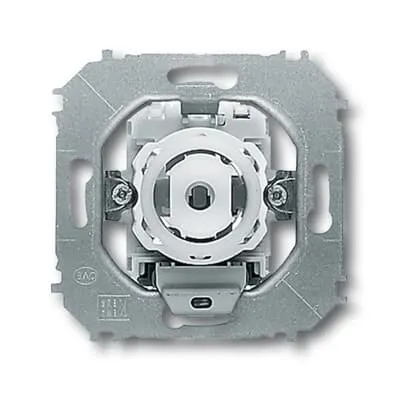

ABB 2CKA001022A0623 Switch Insert - Neon Lamp IP20 CE
Part Number: 2CKA001022A0623
Quick Summary
ABB 2CKA001022A0623 Switch Insert with Neon Lamp offers clear on/off indication for 2-pole control panels. In dim environments, operators struggle with ambiguous indicators; the integrated neon lamp provides immediate visual feedback. CE conformity, RoHS and REACH declarations, plus IP20 protection, support safe indoor use and regulatory compliance. This compact, flush-mounted design minimizes panel cutouts while delivering reliable operation in demanding environments. With 71x71 mm footprint and screwless terminals, it speeds installation and reduces maintenance costs. Designed for flush mounting with claw or screw fastening, it suits both retrofit and new installations. The wiring diagram EN 2001_2ukgl-101_a and 2-pole configuration support fast, error-free connections for control circuits. The orange neon indicator aligns with standard industrial optics, ensuring quick status checks across busy panels.
Product Information
Extended Description
2CKA001022A0623 ABB: With neon lamp. Suitable for impuls cover plate with operating knob.
Wiring Diagram
Connection diagram [EN] 2001_2ukgl-101_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Function
Function lighting: Control and orientation
Number of Rocker Switches
1
Wiring Configuration
2-pole switch
Actuator Type
Rocker/button
Lamp Type
Neon lamp
Illumination
Illuminated
Lamp Color
Orange
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
impuls
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
45 mm
Product Net Weight
69 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2001_2ukgl-101
RoHS Information
Product Declaration.PDF [EN] 2001/2 UKGL-101
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2001/2 UKGL-101
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature → Business Impact → Application: Neon indicator provides immediate status visibility, reducing operator error and downtime in control panels; suitable for dim environments and industrial enclosures. Feature → IP20 protection and flush-mounted installation minimize dust ingress and surface footprint, enabling reliable operation in indoor equipment housings and panel assemblies. Feature → Screwless terminals and a 2-pole wiring configuration streamline wiring, shorten installation times, and lower torque-related wear in high-volume assemblies. Feature → Thermoplastic/Duroplast construction offers cost-effective durability with RoHS and REACH compliance, supporting long-term regulatory alignment and simpler maintenance in manufacturing lines. Feature → 71x71 mm footprint with 32 mm built-in depth enables compact retrofits and dense panel layouts, improving enclosure density and reducing material costs. Feature → Impuls design range and compatibility with impulse cover plates facilitate standardized control strategies across machinery, enhancing maintenance predictability and spare-part planning.
Get a Quick Quote for a ABB 2CKA001022A0623
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001022A0623?
Enquire Now
FAQs
This switch insert is designed for flush-mounted installation with either claw or screw fasteners, enabling secure mounting in impulse cover plates and standard control panels. The device uses screwless terminals to simplify wiring, reducing setup time and torque-related issues during installation.
It operates at 250 V and 10 A, suitable for general control circuits. The unit includes a neon lamp indicator (orange) for clear on/off status, improving visibility in busy or dim environments.
The indicator is neon-based with orange illumination as specified in the lamp color attribute. This color choice aligns with common industrial signaling conventions for status indication in control panels.
The switch insert is CE compliant and RoHS/REACH compliant, ensuring regulatory alignment for European manufacturing. It carries IP20 protection and is compatible with WEEE guidance, supporting safe indoor use and end-of-life recycling in industrial settings.
Its design targets impuls control applications with a flush-mounted profile, compatible mounting with claws or screws, and a 2-pole configuration. The included EN 2001_2ukgl-101_a wiring diagram and 71x71 mm footprint simplify retrofits and new builds while delivering reliable, easy-to-wire operation in automation panels.
