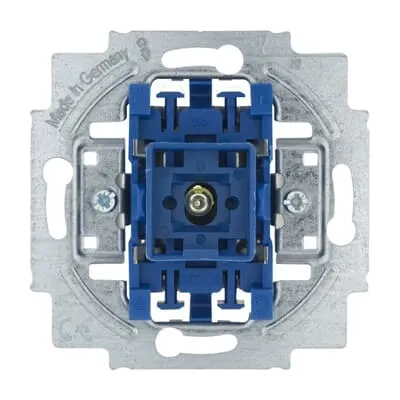

ABB 2CKA001022A0659 Flush Mounted Insert - IP20 Neon Orange
Part Number: 2CKA001022A0659
Quick Summary
The ABB 2CKA001022A0659 Flush Mounted Insert with Neon lamp provides a 1P+N control solution for panel applications. Engineers often face indicator lighting that is hard to replace and requires panel access, increasing downtime. Designed to meet IP20 protection and CE conformity, with REACH declarations for compliant material use. Its front-mounted, screw terminals and 250 V/10 A ratings support easy integration into existing installations, minimizing tool time and preserving modular system compatibility across Busch-Duro and Reflex ranges. The result is faster, safer panel signaling with reduced maintenance burden and predictable upgrade paths for retrofit projects.
Product Information
Extended Description
2CKA001022A0659 ABB: With neon lamp 8352 as indicator light.
Lamp can be changed from the front of the switch insert.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Function
Function lighting: Control and orientation
Number of Poles
1P+N
Number of Rocker Switches
1
Wiring Configuration
Two-way switch
Actuator Type
Rocker/button
Lamp Type
Neon lamp
Product Type
with N-terminal
Illumination
Illuminated
Lamp Color
Orange
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2000/6 USK-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2000/6 USK-500
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Feature: Flush Mounted insertion with mounting plate creates a slim, front-facing configuration that minimizes panel intrusion while delivering clean aesthetics and easier retrofits. Business Impact: Reduces panel depth, speeding up installation and reducing enclosure footprint, which translates into cost savings on large-scale control projects. Application: Ideal for panel builders integrating ABB modular components within Busch-Duro 2000 SI and Reflex SI systems. Feature: Neon lamp indicator provides immediate visual status with front-access lamp replacement. Business Impact: Improves operator response times in dim environments and lowers maintenance complexity by allowing lamp changes from the front without panel dismantling. Application: Suitable for control panels in manufacturing lines, packaging machines, and conveyors. Feature: Screw terminals enable robust, vibration-resistant wiring with straightforward field connections. Business Impact: Cuts commissioning time and minimizes risk of loose connections during runtime, enhancing reliability in harsh industrial settings. Application: Fits standard DIN rail enclosures and aligns with 250 V / 10 A circuits. Feature: 1P+N electrical configuration with a single rocker/button actuation simplifies wiring and control logic. Business Impact: Reduces wiring errors and speeds up harness assembly, improving overall line uptime. Application: Common in indicator switches for lighting control and status signaling across industrial automation. Feature: Comprehensive compliance package (RoHS, REACH, CE) and clear documentation simplify regulatory approvals and downstream procurement. Business Impact: Streamlines audits and reduces compliance risk in European projects. Application: Suitable for OEMs delivering panel assemblies to European customers.
Get a Quick Quote for a ABB 2CKA001022A0659
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001022A0659?
Enquire Now
FAQs
Install the unit flush with the panel opening using the included mounting plate. The product supports mounting with claw or screw methods and uses screw terminals for field wiring. Ensure the panel cutout matches the 71 x 71 mm footprint and preserve IP20 protection by securing the front face. This setup enables front-access lamp replacement and easy servicing without full panel disassembly.
The insert is rated for 250 V and 10 A, suitable for standard control circuits. It features a neon lamp indicator (orange) that can be illuminated to provide visual status. Wiring is via screw terminals, and the module supports 1P+N two-way switching with a rocker/button actuator for reliable actuation and clear signaling.
Yes, this insert is designed for indoor panel use in automation settings. It carries IP20 protection, making it appropriate for interior installations where ingress from small objects is a concern. Its 1P+N configuration and front-mounted indicator help maintain visibility and control in crowded control cabinets.
The product complies with CE marking requirements and carries REACH and RoHS declarations. It is documented for EU compliance, including environmental and safety considerations, and is listed in WEEE categories. This helps streamline regulatory approvals for European projects and ensures material traceability and safe disposal.
Front-face lamp replacement minimizes downtime by eliminating the need to open the panel for indicator service. This reduces maintenance labor, speeds fault diagnosis, and lowers spare-parts inventory costs. For high-uptime environments, such as conveyors and automated lines, these efficiencies translate to measurable increases in line availability and reduced shutdown time.
