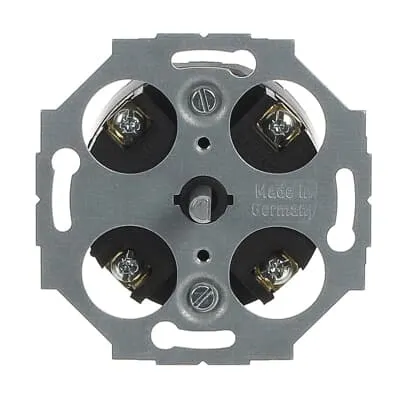

ABB 2CKA001043A0124 Timer Insert - 120 mins IP20
Part Number: 2CKA001043A0124
Quick Summary
ABB timer insert 2CKA001043A0124 provides time-programmed control for electrical loads in control panels. This solution addresses the pain of energy waste and unpredictable machine cycles caused by manual timing, delivering precise operation instead. It carries CE conformity and RoHS/REACH declarations, along with IP20 protection for safe use inside standard enclosures, helping you meet common industry and regional requirements. The flush-mounted insertion with a mounting plate simplifies installation in compact panels, while screw terminals streamline wiring and future service. With a 120-minute runtime and two NO contacts rated up to 16 A at 250 V, it supports reliable, low-maintenance sequencing for lighting, drives, or zone control in industrial applications.
Product Information
Extended Description
2CKA001043A0124 ABB: Running time: 120 min For time-programmed switching of electrical consumers.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw | Without Claw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Actuator Type
Turn button
Illumination
Non-illuminated
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Power Watt
LEDi / CFLi 200 W
Number of Contacts NO
2
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | alpha | impuls
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur
Surface Finishing
Untreated
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
48 mm
Product Net Weight
113 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_1070u
E-Number (Finland)
2619621
E-Number (Sweden)
1815871
RoHS Information
Product Declaration.PDF [EN] 1071 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 1071 U
ETIM 9
EC000107 - Timer for domestic switching devices
eClass
V11.0 : 27144053
Feature: 120-minute runtime enables exact timing windows for sequential operations. Business Impact: Reduces energy use and enables predictable process steps, cutting waste and downtime. Application: Lighting control, HVAC cycles, or staged equipment startups in control panels. Feature: Two normally open contacts (NO) rated 16 A at 250 V allows switching of two loads or a single higher‑power circuit. Business Impact: Less hardware, simplified wiring, and reliable load sequencing without extra relays. Application: Dual-zone control or two‑circuit lighting programs in machine bays. Feature: Flush-mounted design with mounting plate for compact panel integration. Business Impact: Saves panel space, simplifies retrofits, and accelerates installation in modern control enclosures. Application: DIN- or panel-mounted control modules in ABB or third-party frames. Feature: Turn-button actuator and screw-terminals streamline manual operation and wiring. Business Impact: Intuitive maintenance and robust, vibration-resistant connections reduce downtime. Application: Field adjustments and service in industrial environments. Feature: IP20 protection and RoHS/REACH compliance ensure safe, regulation-friendly use. Business Impact: Lower risk of dust ingress and environmental compliance costs. Application: Enclosures and panels in standard industrial settings. Feature: Compact dimensions (71 x 71 x 48 mm) and built-in depth of 32 mm provide predictable fit in limited spaces. Business Impact: Facilitates design for compact control cabinets and reduces footprint costs. Application: Retrofit projects or new panels where space is at a premium. Feature: Certifications and declarations (CE, RoHS, REACH, WEEE) provide regulatory confidence. Business Impact: Faster approval cycles, reduced QA overhead, and assurance for global deployments. Application: Global manufacturing environments with strict compliance requirements.
Get a Quick Quote for a ABB 2CKA001043A0124
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001043A0124?
Enquire Now
FAQs
This timer insert is designed for flush-mounted installation in standard control panels using the included mounting plate. It features screw terminals for easy wiring and fits within compact ABB and compatible frame systems. Typical applications include lighting control, machine sequencing, and zone control in panel enclosures with IP20 protection.
The unit provides 250 V rated voltage, 16 A rated current, and two normally open contacts (NO). It supports a 120-minute runtime for time-programmed switching and is non-illuminated, with screw terminals for straightforward wiring and a turn-button actuator for manual control.
The device carries IP20 protection, which is suitable for interior panel mounting away from direct exposure to dust and water. It is designed for standard control cabinet environments and complies with RoHS and REACH declarations, CE conformity, and related WEEE guidelines, making it appropriate for many industrial applications but not for washdown or high-dust/humidity environments.
The timer insert complies with CE declarations and RoHS/REACH compliance, with REACH information and a dedicated WEEE category. It also offers a true IP20 rating and a CE Declaration of Conformity, ensuring alignment with European regulatory requirements for safe, eco-friendly operation.
Expect reduced maintenance due to solid mechanical construction and screw-terminal wiring that simplifies servicing. The precise 120-minute timing improves process reliability and energy efficiency, reducing waste and false starts. Over time, these efficiencies translate into lower labor and energy costs while improving equipment uptime in panel-based applications.
