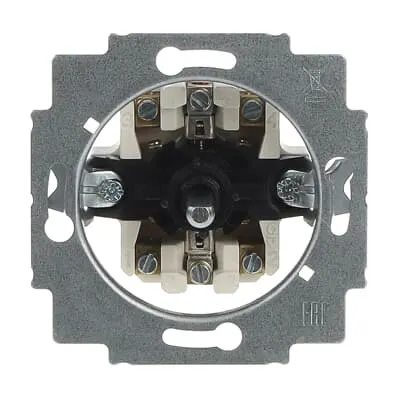

ABB 2CKA001101A0559 Blind switch insert - IP20
Part Number: 2CKA001101A0559
Quick Summary
Blind switch insert delivers compact, flush-mounted two-pole push-button control for panel enclosures in machine control applications. Engineers often struggle with space constraints, wiring complexity, and achieving reliable operation in compact cabinets. This ABB unit meets those challenges with a durable Duroplast body, IP20 protection, and CE, RoHS, and REACH compliance, ensuring safe operation in harsh environments. Its modular design supports integration with Busch-Duro 2000 SI, Reflex SI, and other Busch ranges, reducing panel cutouts and installation time. By combining a rotary knob with a push button, it minimizes components while improving operator ergonomics, delivering cost savings and streamlined maintenance for industrial control panels.
Product Information
Extended Description
2CKA001101A0559 ABB: With rotary knob/push button.
Wiring Diagram
Connection diagramm [EN] 2712u_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Number of Poles
2P
Wiring Configuration
2-pole push button
Actuator Type
Turn button
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Power
LEDi 100 V·A
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha | impuls
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
49 mm
Product Net Weight
77.5 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2712u
RoHS Information
Product Declaration.PDF [EN] 2722 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2722 U
ETIM 9
EC000044 - Window blind switch
eClass
V11.0 : 27144025
With a 2-pole configuration rated at 250 V and 10 A, the device delivers reliable, dual-channel control for common automation circuits. This translates into predictable switching, reduced contact wear, and lower risk of nuisance trips in demanding environments. Operators in packaging, textiles, or machine tooling benefit from a compact, shielded unit that fits next to other controls without crowding the panel. Flush-mounted installation with a mounting plate and the option of claws or screws simplifies retrofits and new panels alike, maintaining a clean panel line. The compact footprint (71 x 71 mm) and built-in depth of 32 mm minimize panel cutouts and spare space in tight enclosures, accelerating wiring and commissioning. The turn-button actuator combines rotary control with push-button actuation for intuitive operation, while screw terminals provide secure, field-friendly wiring. This arrangement supports straightforward installation in control cabinets and reduces field wiring time. Constructed from robust Duroplast and rated IP20, the unit withstands indoor panel conditions and is RoHS, REACH, and WEEE compliant, reducing regulatory risk and simplifying supplier audits. Panels in highly regulated industries—pharma, food processing, and automotive—benefit from this certification suite. Designed for modular automation ecosystems, it supports Busch-Duro 2000 SI, Reflex SI, and related ranges via standardized mounting and frame compatibility. The flush-mounted insert with mounting plate, documented wiring diagram EN 2712u_a, and clear ETIM/eClass alignment streamline specification and procurement.
