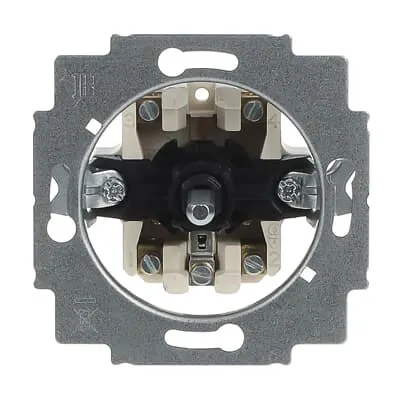

ABB 2CKA001101A0567 Blind switch insert - IP20, 1P+N+X
Part Number: 2CKA001101A0567
Quick Summary
ABB 2CKA001101A0567 blind switch insert is a compact 1P+N+X control module designed for panel applications. Engineers seek configurations that save space and simplify wiring, and this unit delivers flush mounting with versatile fastening plus a clear wiring diagram for straightforward installation. It carries CE conformity, RoHS, and REACH compliance to support regulatory requirements in modern automation environments while ensuring safe operation at up to 250 V and 10 A. Designed for modular integration with Busch-Duro 2000 SI and Reflex SI families, it helps streamline panel design, reduce assembly time, and lower lifecycle costs while maintaining robust reliability across industrial conditions.
Product Information
Extended Description
2CKA001101A0567 ABB: With rotary knob/push button.
Wiring Diagram
Connection diagramm [EN] 2723u_b
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Number of Poles
1P+N+X
Wiring Configuration
1-pole push button
Actuator Type
Turn button
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Power
LEDi 100 V·A
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha | impuls
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
49 mm
Product Net Weight
73.5 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2712u
RoHS Information
Product Declaration.PDF [EN] 2723 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2723 U
ETIM 9
EC000044 - Window blind switch
eClass
V11.0 : 27144025
Feature: Flush mounted 1P+N+X construction with a 1-pole push button actuator. Business Impact: Maximizes panel real estate and simplifies actuation routing, enabling tighter layouts and fewer wiring errors. Application: Ideal for control panels in machine enclosures where space is at a premium and quick access is required. Feature: Screw terminal wiring configuration. Business Impact: Improves wiring integrity and vibration resistance, reducing field maintenance time and rework. Application: Suitable for new builds or retrofits in harsh factory environments where secure terminations are essential. Feature: IP20 protection rating. Business Impact: Provides interior protection against finger intrusion and incidental dust, supporting compliant indoor installations. Application: Common in cabinet doors and internal control panels in food, packaging, and packaging machinery lines. Feature: Flush-mounted insert with mounting plate. Business Impact: Simplifies retrofit and ensures consistent depth alignment across modules, cutting installation time by aligning with standard DIN rail/faceplate layouts. Application: Seamless integration with modular ranges like Busch-Duro 2000 SI and Reflex SI. Feature: Design Range compatibility with multiple lines. Business Impact: Offers design flexibility and future-proofing for multi-brand panel architectures, reducing part variety. Application: Deployable across a broad range of operator interfaces, carat to impuls series, enhancing reuse and standardization. Feature: RoHS and REACH compliance plus CE conformity. Business Impact: Ensures regulatory eligibility and safer materials management, mitigating risk in audits and supplier assessments. Application: Ideal for OEMs targeting European markets and registered compliance documentation.
Get a Quick Quote for a ABB 2CKA001101A0567
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001101A0567?
Enquire Now
FAQs
This blind switch insert supports flush mounting with either claw or screw fastening and comes with a mounting plate for easy retrofit. It is designed for a 1P+N+X wiring configuration and pairs with modular enclosures from Busch-Duro 2000 SI and Reflex SI families, offering a consistent faceplate footprint (71 mm square) for multi-device panels.
Power is wired via screw terminals for a 1-pole push button in a 1P+N+X setup. Follow the EN 2723u_b wiring diagram for correct connection: apply the live to the designated pole, neutral to N, and the optional extra contact X as required. Ensure power is off during installation and verify secure terminal clamping to prevent looseness.
Yes. The device is rated IP20, making it suitable for indoor control panels and cabinet interiors where finger protection and dust ingress are minimal concerns. For harsher environments, consider additional enclosure protection or alternate IP-rated variants within the same design family.
The 2CKA001101A0567 is specified within Busch design ranges and designed to pair with Busch-Duro 2000 SI and Reflex SI modules. Its flush-mount insert with mounting plate ensures consistent alignment, enabling quick panel integration and scalable layouts across a mixed-brand but standardized control interface.
The switch insert complies with CE declarations, is RoHS information-compliant under EU Directive 2011/65/EU with amendments, and REACH declarations confirm no substances above 0.1 mass percentage. WEEE categorization places it in 5. Small Equipment, supporting responsible disposal and sustainability programs.
