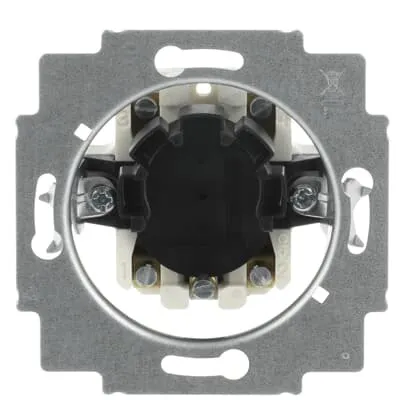

ABB 2CKA001101A0880 Blind Switch Insert - IP20 10 A
Part Number: 2CKA001101A0880
Quick Summary
ABB 2CKA001101A0880 blind switch insert provides a compact, flush-mounted 1P+N+X control suitable for panel installations. Engineers often struggle with space constraints and wiring complexity in control panels, making quick, reliable integration essential. This unit offers CE conformity, RoHS compliance, and REACH declarations, with IP20 protection for indoor environments. Designed for seamless compatibility with screw-terminal wiring and a mounting plate, it accelerates installation and reduces field wiring errors in industrial panels. Common applications include HVAC consoles, packaging lines, and machine control panels where a single insertion handles both switching and push actuation.
Product Information
Extended Description
2CKA001101A0880 ABB: For profile semi-cylindrical lock/switch and push-switch. Delivered without cylindrical lock.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [DE] 1755-XXX 2557 PZ-XX-101 2155 PZ-31
Wiring Diagram
Connection diagramm [EN] 2712u_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Number of Poles
1P+N+X
Wiring Configuration
1-pole switch and push switch
Actuator Type
Key
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Power
LEDi 100 V·A
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
35 mm
Product Net Weight
65 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2712usl-101
RoHS Information
Product Declaration.PDF [EN] 2713 USL-101
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2713 USL-101
ETIM 9
EC000044 - Window blind switch
eClass
V11.0 : 27144025
Feature → Business Impact → Application: The 1P+N+X configuration enables multi-function control in a single module, reducing component count and saving panel space, which lowers material costs and installation time for compact control panels. Application: Ideal for panel interiors in machinery and HVAC systems where space is at a premium. Feature → Business Impact → Application: Screw-terminal wiring provides robust, vibration-resistant connections, improving long-term reliability and minimizing maintenance visits in harsh industrial environments. Application: Suitable for heavy-use control panels in manufacturing and material handling. Feature → Business Impact → Application: Flush-mounted design with mounting plate simplifies retrofits and new builds alike, delivering cleaner aesthetics and faster assembly on the line. Application: Perfect for door-lock/switch enclosures and profile semi-cylindrical lock applications. Feature → Business Impact → Application: IP20 protection and durable Duroplast construction reduce ingress risk and wear, extending service intervals for indoor control stations. Application: Panel-mounted controls in energy management and process automation. Feature → Business Impact → Application: 250 V, 10 A rating and 1-pole + push switch actuation provide reliable, standardized control signals, supporting straightforward integration with PLCs and relays. Application: Machine start/stop and interlock functions in manufacturing lines.
