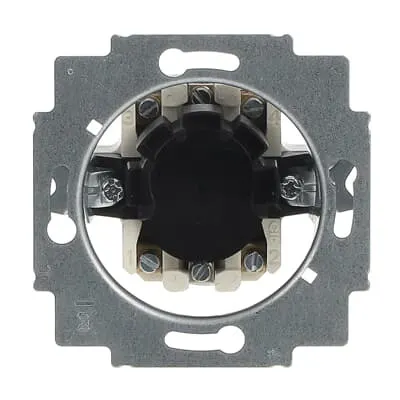

ABB 2CKA001101A0898 Blind Switch Insert - IP20
Part Number: 2CKA001101A0898
Quick Summary
Blind switch insert 2CKA001101A0898 provides a 2-pole push-button interface for flush-mounted control panels in electrical cabinets. Engineers often struggle with reliable mounting and neat, accessible wiring in tight spaces, which can slow commissioning and increase fault risk. It carries CE conformity, RoHS compliance, and IP20 protection, offering regulatory peace of mind and safer operation in typical industrial environments. The design supports flush-mounted installations with a mounting plate, and uses screw terminals for secure, vibration-resistant connections. With a 10 A rating at 250 V and a compact 71 × 71 mm footprint, it delivers dependable control in compact enclosures while minimizing wiring complexity and service time.
Product Information
Extended Description
2CKA001101A0898 ABB: For profile semi-cylindrical lock/push-button. Delivered without cylindrical lock.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [DE] 1755-XXX 2557 PZ-XX-101 2155 PZ-31
Wiring Diagram
Connection diagramm [EN] 2712u_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Number of Poles
2P
Wiring Configuration
2-pole push button
Actuator Type
Key
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Power
LEDi 100 V·A
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
34.3 mm
Product Net Weight
74 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2712usl-101
RoHS Information
Product Declaration.PDF [EN] 2722 USL-101
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2722 USL-101
ETIM 9
EC000044 - Window blind switch
eClass
V11.0 : 27144025
Feature: 2-pole push-button with screw terminals. Business Impact: Simplified wiring reduces assembly time and wiring errors on dense control panels, improving first-pass assembly yield. Application: Ideal for machine enclosures and panel-mounted controls where space is limited and reliability is critical. Feature: Flush-mounted mounting type with mounting plate. Business Impact: Seamless integration in panel faces, minimizing protrusion and risk of impact damage. Application: Suitable for profile semi-cylindrical lock/push-button interfaces in compact control stations. Feature: IP20 protection and robust Duroplast body. Business Impact: Enhanced ingress protection and durable operation in indoor industrial environments, lowering maintenance costs. Application: Environments requiring reliable interaction with minimal environmental sealing. Feature: 250 V, 10 A electrical rating with 2-pole configuration. Business Impact: Supports standard control circuits with adequate current for many local control functions, reducing the need for additional modules. Application: Control of small- to mid-power peripherals within control panels. Feature: Modular compatibility including Mounting Plate and standard wiring diagrams. Business Impact: Faster project kick-off with clear installation guidance and flexible fastening options, reducing field labor time. Application: Works with common enclosure layouts and standard terminal blocks for streamlined wiring. Feature: Material and compliance suite (Duroplast, RoHS, REACH, WEEE, CE). Business Impact: Regulatory assurance and long-term reliability, minimizing risk during audits and supplier qualification. Application: Suitable for OEMs and panel builders adhering to European environmental standards.
Get a Quick Quote for a ABB 2CKA001101A0898
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001101A0898?
Enquire Now
FAQs
The 2CKA001101A0898 is designed for flush-mounted installations and ships with a mounting plate. It supports mounting with claws or screws, making it compatible with standard control panels and enclosure faces. The compact 71 x 71 mm footprint fits dense panel layouts, and screw terminals enable secure, vibration-resistant connections suitable for electrical cabinets and machine panels.
This switch insert is rated for 250 V with a maximum current of 10 A in a 2-pole configuration. It supports a maximum switching power of LEDi 100 V·A, making it appropriate for local control circuits and actuator interfaces within typical machine and process panels. The actuator is a key-type switch, and wiring uses screw terminals for reliable field connections.
Yes. The product is designed for profile semi-cylindrical lock/push-button installations and is intended for flush-mounted use with a mounting plate. Its 71 x 71 mm footprint and 32 mm built-in depth keep it unobtrusive in compact control stations, while the 2-pole push-button configuration provides straightforward operation for locking and control actions in tight spaces.
The component complies with CE declarations, RoHS, REACH, and WEEE guidelines, ensuring regulatory alignment for European markets. It carries IP20 protection and is built from durable Duroplast material, contributing to ongoing compliance in clean, indoor industrial environments. These certifications support audits, supplier qualification, and customer acceptance in regulated projects.
The 2CKA001101A0898 uses screw terminals, which provide secure, serviceable connections that simplify maintenance and reduce repeat faults. Its compact footprint and robust material reduce installation time and space impact, contributing to faster commissioning and lower field labor costs. The IP20 rating and CE/RoHS/REACH/WEEE compliance also minimize compliance-related maintenance overhead and risk.
