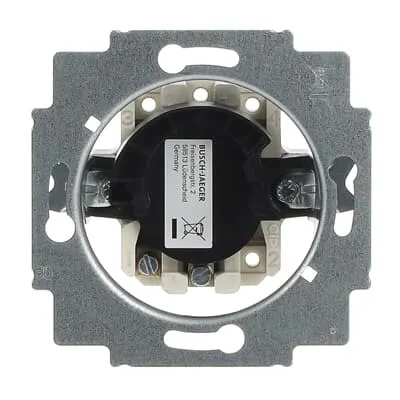

ABB 2CKA001101A0914 Key switch insert - IP20
Part Number: 2CKA001101A0914
Quick Summary
ABB 2CKA001101A0914 key switch insert is a compact 1-pole control module designed for secure access panels. Engineers often worry about unauthorized panel access and inconsistent operation caused by unreliable actuators. It carries CE, RoHS, and REACH declarations, plus IP20 protection for indoor control environments. With flush-mounted mounting and a 10 A, 250 V rating, it streamlines installation and improves panel-security posture. Designed for modular compatibility, it integrates with various Busch-Duro 2000 SI families and similar panels for scalable systems. Businesses value reduced wiring complexity and durable construction that supports long service life in manufacturing environments. Its non-illuminated actuator and screw-terminal wiring simplify maintenance and upgrades in panel assemblies.
Product Information
Extended Description
2CKA001101A0914 ABB: For profile semi-cylindrical lock. In switched-on and switched-off status the key can be pulled out in the central position, respectively. Delivered without cylindrical lock.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Number of Rocker Switches
1
Wiring Configuration
1-pole switch
Actuator Type
Key
Illumination
Non-illuminated
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
35 mm
Product Net Weight
65 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2712usl-101
RoHS Information
Product Declaration.PDF [EN] 2733 USL-101
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2733 USL-101
ETIM 9
EC001590 - Installation switch
eClass
V11.0 : 27144053
Flush Mounted with Screw Fastening and Mounting Plate enables a clean bezel, precise alignment, and rapid installation in control panels, reducing commissioning time and field errors. The 1-pole switch rated at 250 V and 10 A delivers predictable, safe control of general-purpose circuits, supporting compliance with CE and RoHS while minimizing arcing risk in routine machine operations. The Duroplast body combined with IP20 protection provides durable performance in indoor environments, guarding against dust ingress and ensuring a long service life in factory aisles and cabinet fronts. Design Range compatibility across Busch-Duro 2000 SI, Reflex SI, and related families enables flexible integration into existing architectures, lowering total cost of ownership through modularity and future-proofing. Screw terminals and a compact 71x71 mm footprint with 32 mm built-in depth simplify wiring, improve termination reliability, and accelerate front-panel installation for retrofit projects. Regulatory compliance, including ROHS, REACH declarations, and WEEE categorization, supports audits and sustainable procurement, reducing risk during supplier qualification and lifecycle management.
Get a Quick Quote for a ABB 2CKA001101A0914
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001101A0914?
Enquire Now
FAQs
The product uses a flush-mounted installation with screw fastening and a mounting plate, enabling a neat bezel and precise alignment. It fits a 71x71 mm front panel footprint with a 32 mm built-in depth and screw-terminal wiring for reliable terminations in panel assemblies.
Yes. It carries a CE declaration of conformity and compliance with RoHS and REACH requirements, along with WEEE categorization. These certifications support regulatory procurement, audits, and lifecycle management for industrial panels and machinery.
The unit is a 1-pole switch rated for 250 V and 10 A, non-illuminated, with screw-terminal connections. It is designed for control circuits in industrial panels, providing predictable switching performance within the specified voltage and current limits.
It is ideal for secure panel access in control cabinets, machine doors, and interlock applications. It supports modular integration with Busch-Duro 2000 SI and Reflex SI families, making it suitable for retrofit projects and new installations in manufacturing and packaging environments.
Expect CE conformity, RoHS information and status, REACH declaration and date, and WEEE categorization. ETIM 9 and eClass classifications further support technical data matching in procurement systems and technical documentation.
