ABB 2CKA001101A0918 Level switch insert 1P - IP20
Part Number: 2CKA001101A0918
Quick Summary
ABB level switch insert provides reliable 1P level sensing for flush-mounted control panels. Engineers often grapple with space constraints and wiring complexity during retrofits. With CE conformity, RoHS compliance, and IP20 protection, this device meets essential safety and environmental standards. Designed for durable flush-mounted installation and 250 V/16 A operation, it supports compatible modular switch systems and speeds up commissioning, reducing downtime and field adjustments. The flush-mounted design minimizes front-access intrusion while the 1P configuration simplifies wiring diagrams. In addition, deep box compatibility under DIN 49073 requirements ensures reliable installation. The product’s Design Range compatibility with standard faceplates and integrated mounting plate reduces rework. Overall, the solution delivers speed, reliability, and long-term value for panel builders.
Product Information
Extended Description

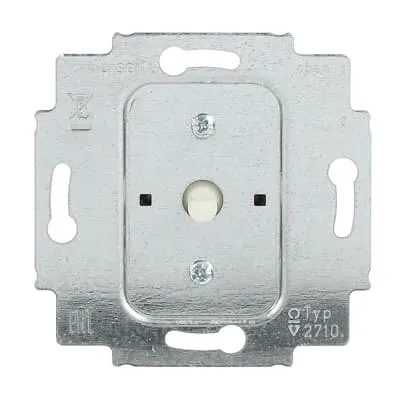

2CKA001101A0918 ABB: Three-Step switch insert with zero position, 0-1-2-3.
Not suitable for surface mounting boxes 1701-xxx, 1702-xxx, 1703-xxx.
Installation in deep flush-mounted boxes according to DIN 49073 required.
Wiring Diagram
Connection diagramm [EN] 2710 U
Mounting Type
Flush Mounted
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Number of Poles
1P
Wiring Configuration
1-pole switch
Actuator Type
Turn button
Product Type
with zero position
Rated Voltage (Ur)
250 V
Auxiliary Voltage AC/DC
250 V AC/DC
Rated Current (In)
16 A
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Duroplast
RAL Number
RAL 1013 - Oyster White
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
56 mm
Product Net Weight
81 g
Built-In Depth (t2)
40 mm
RoHS Information
Product Declaration.PDF [EN] 2710 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2710 U
ETIM 9
EC001036 - Three-stage switch
eClass
V11.0 : 27144016
