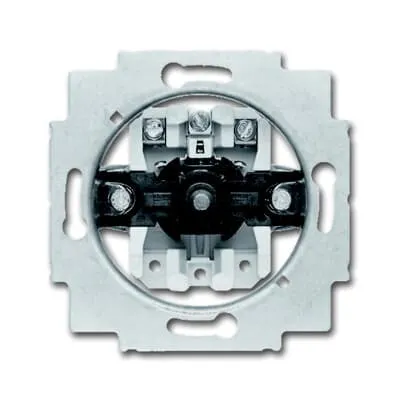

ABB 2CKA001164A0193 Flush Mounted Inserts - IP20
Part Number: 2CKA001164A0193
Quick Summary
ABB 2CKA001164A0193 flush mounted inserts provide compact 1P, two-way switch control for panel-mounted applications in industrial control cabinets. Engineers often struggle with space constraints and wiring complexity in tight control panels; this solution delivers a low-profile footprint with screw terminals for quick, reliable installation. Built for reliability, the device carries CE conformity, RoHS and REACH compliance, and IP20 protection, ensuring safe operation in standard industrial environments. Its durable Duroplast body with matt, untreated surface resists wear in demanding installations while remaining easy to clean. Choosing this insert supports panel standardization and reduces maintenance timelines, delivering improved downtime metrics and consistent performance across machines and line-side equipment.
Product Information
Extended Description
2CKA001164A0193 ABB: WECHSELSCH. M. NULLST.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Number of Poles
1P
Wiring Configuration
Two-way switch
Actuator Type
Turn button
Illumination
Non-illuminated
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Power Watt
LEDi / CFLi 100 W
Surface Finishing
Untreated | Matt
Material
Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40.3 mm
Product Net Weight
80 g
Built-In Depth (t2)
32 mm
RoHS Information
Product Declaration.PDF [EN] 2711 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2711 U
ETIM 9
EC001036 - Three-stage switch
eClass
V11.0 : 27144053
Feature: Flush Mounted mounting type enables a slim profile in control panels. Business Impact: Maximizes panel real estate, reducing enclosure size and wiring length, which lowers material and labor costs. Application: Ideal for compact control cabinets and equipment enclosures. Feature: 1P two-way switch with a turn-button actuator provides straightforward operation without illumination. Business Impact: Simplifies operator interface and minimizes power draw in standby, improving reliability in non-illuminated control points. Application: Start/stop control on machinery where external indication is not required. Feature: Rated 250 V and 10 A with a 100 W load rating (LEDi/CFLi) supports common panel workloads. Business Impact: Enables standard automation loads while maintaining thermal margins, reducing the need for additional components. Application: Panel control circuits and small machinery drives. Feature: Duroplast material with matte finish offers durable, easy-to-clean surfaces. Business Impact: Improves lifecycle durability in harsh environments and reduces maintenance frequency. Application: Industrial panels exposed to dust, grime, and frequent touch. Feature: IP20 protection and 32 mm built-in depth ensure safe installation in typical cabinet cutouts. Business Impact: Simplifies retrofits and ensures compliance with basic enclosure standards, shortening commissioning time. Application: New builds and retrofits in factory automation. Feature: Compliance and standards coverage (CE, RoHS, REACH, WEEE) provides regulatory confidence. Business Impact: Reduces risk of non-compliance penalties and streamlines procurement across regions. Application: Global panel assembly and machine builders.
Get a Quick Quote for a ABB 2CKA001164A0193
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001164A0193?
Enquire Now
FAQs
This insert is flush mounted and accepts mounting with claw or screw fastenings. It fits standard panel cutouts with a net width and height of 71 mm and a depth of 40.3 mm, using screw terminals for straightforward wiring. The built-in depth is 32 mm, ensuring a clean, compact panel fit in most control cabinets.
The device is rated for 250 V and 10 A, with a maximum load of 100 W for LEDi/CFLi applications. It is a 1P, two-way switch with a turn-button actuator and non-illuminated operation, suitable for standard panel control duties without requiring external illumination or extra mitigation components.
Yes. The product complies with RoHS (EU Directive 2011/65/EU and Amendment 2015/863) and REACH requirements. Documentation includes a RoHS declaration and REACH article declarations, confirming material compliance and absence of substances above the regulatory thresholds.
It's ideal for control panels, machine starts/stops, and other panel-mounted switching in automation environments. The IP20 rating provides protection against solid objects at a domestic to industrial scale, while the matte Duroplast body withstands typical workshop conditions and frequent human interaction.
Conformity is supported by the EU Declaration of Conformity (CE), RoHS and REACH declarations, a CMRT, WEEE categorization, and ETIM 9 and eClass classifications. The package includes or references CE DoC, RoHS information, REACH declarations, and relevant standard references for procurement audits.
