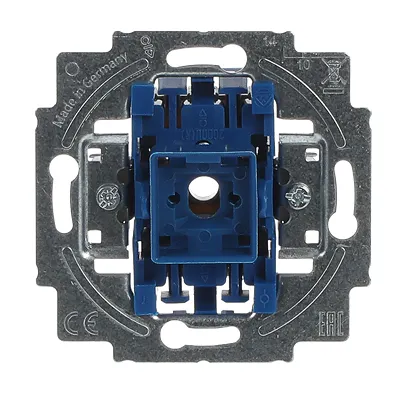

ABB 2CKA001413A0475 Push switch insert - IP20
Part Number: 2CKA001413A0475
Quick Summary
ABB Push switch insert for control panels delivers a compact, reliable one-pole switch solution. Engineers often grapple with mounting compatibility, wiring complexity, and regulatory compliance when updating control interfaces. This unit meets CE conformity, RoHS, and REACH requirements while offering IP20 protection for safe operation in diverse environments. Its flush-mounted design and screw-terminal wiring simplify installation, enabling quick panel upgrades and consistent performance across ABB and third-party modular ranges. For projects prioritizing reliability, ease of retrofit, and scalable automation, this push switch insert helps streamline procurement and maintenance while supporting standardization across control panels.
Product Information
Extended Description
2CKA001413A0475 ABB: With N terminal.
Wiring Diagram
Connection diagramm [EN] 2621ww_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Contacts Configuration
1 NO, 0 NC
Number of Poles
1P+N
Number of Rocker Switches
1
Wiring Configuration
1-pole push switch
Actuator Type
Push button
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts NO
1
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
Dimension Diagram
Dimension drawing [EN] m_2020usgl
RoHS Information
Product Declaration.PDF [EN] 2020 US
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2020 US
ETIM 9
EC000029 - Push button
eClass
V11.0 : 27144044
Feature → Business Impact → Application: The 1 NO contact with a 250 V, 10 A rating delivers dependable actuation for small loads in machine control circuits, reducing downtime and extending component life in automation panels. This translates to faster commissioning and lower replacement costs in high-use panels. Application: control panels and dashboard assemblies where space is at a premium and robust electrical performance is required. Feature → Business Impact → Application: Flush-mounted mounting type with claw or screw fastening enables a neat, integrated appearance and minimizes panel depth, improving operator accessibility and reducing enclosure footprint in compact machine rooms. Application: modernized control enclosures and retrofit projects where flush integration is essential. Feature → Business Impact → Application: Screw terminals support reliable, vibration-resistant connections and straightforward field wiring, decreasing installation time and error rates in panel builds. Application: industrial wiring in 250 V networks across packaging lines and assembly stations. Feature → Business Impact → Application: IP20 protection, RoHS and REACH compliance, and CE declarations reduce regulatory risk and support sustainability goals, easing audits and end-of-life handling. Application: compliant deployment in European and global environments with environmental and safety standards. Feature → Business Impact → Application: Broad Design Range compatibility including Platform 63, Busch-Duro 2000 SI, Reflex SI, and other Busch ranges provides design flexibility and future-proofing. Application: scalable installations across existing modular switch systems and upgrade paths. Feature → Business Impact → Application: Compact footprint (71 x 71 x 40 mm) with 60 g weight and 25 mm built-in depth simplifies integration into crowded panels and enables modular expansion. Application: space-constrained control panels in packaging, material handling, and automation lines.
Get a Quick Quote for a ABB 2CKA001413A0475
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001413A0475?
Enquire Now
FAQs
The insert is designed for flush-mounted use in modular systems and fits across ABB platform families as well as external ranges listed in design range, including Platform 63, Busch-Duro 2000 SI, Reflex SI, and Busch-art linear. It supports 1P+N, 1 NO, screw terminals and mounting with claw or screws, enabling seamless integration into control panels and console enclosures.
Connect the neutral terminal as required by the N terminal, then wire the single normally open contact using the screw terminals. Use a flush-mounted installation with either claw or screw mounting. The device has a built-in depth of 25 mm, net width 71 mm, and height 71 mm, so ensure cutout matches and allow clearances.
The unit carries CE conformity, RoHS status, REACH declaration, WEEE categorization, and CMRT for compliance across European and global markets. With IP20 protection, it resists solid objects and minor contact, while RoHS/REACH reduce hazardous substances, easing compliance audits, responsible disposal, and corporate sustainability goals.
Dimensions are 71 mm width, 71 mm height, and 40 mm depth, with a built-in depth of 25 mm and a 60 g weight. It is intended for flush-mounted installation using a mounting plate, with option for claw or screw fastening. Use screw terminals for secure connections and refer to the Dimension Diagram for precise cutouts during panel fabrication.
Standardized ABB components reduce spare parts inventory by aligning with existing modular ranges, while the 1 NO contact and IP20 rating minimize downtime and maintenance complexity. Clear compliance (CE, RoHS, REACH) lowers audit risk, and the compact form factor saves panel space, enabling easier future upgrades and consistent long-term cost savings.
