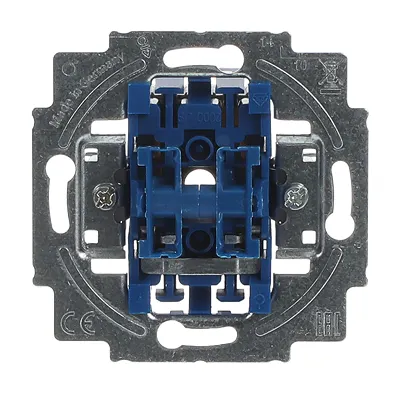

ABB 2CKA001413A0491 Push Switch Insert - CE Certified
Part Number: 2CKA001413A0491
Quick Summary
ABB 2CKA001413A0491 Push Switch Insert is a compact, single-pole module designed for flush-mounted panel installations in control cabinets. For engineers, locating a reliable 2 NO, 10 A switch that fits standard cutouts and supports straightforward wiring can delay projects. It carries CE conformity, RoHS compliance, and REACH declarations, with IP20 protection for interior enclosures and peace of mind for regulatory audits. With screw terminals, mounting with claw or screw, and an option to add a back‑mounted neon indicator, installation is fast and maintenance friendly. Designed to integrate with a wide range of modular frames—Busch-Duro 2000 SI, Reflex SI, and more—it scales from simple panels to complex machines.
Product Information
Extended Description
2CKA001413A0491 ABB: With one input terminal and 2 actuating covers.
Neon lamp 8338-1 as orientation light can be added from the back of the switch insert.
Wiring Diagram
Connection diagramm [EN] 2020us-205_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Contacts Configuration
2 NO, 0 NC
Number of Poles
1P
Number of Outputs
2
Number of Inputs
1
Number of Rocker Switches
2
Wiring Configuration
Series push switch
Actuator Type
Push button
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts NO
2
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
Dimension Diagram
Dimension drawing [EN] m_2020usgl
RoHS Information
Product Declaration.PDF [EN] 2020 US-205
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
0231ccc7-f5c4-4281-973b-228f5e85e815 Germany (DE)
Simplified SCIP
0231ccc7-f5c4-4281-973b-228f5e85e815 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2020 US-205
ETIM 9
EC000029 - Push button
eClass
V11.0 : 27144044
Feature → 2 normally open contacts (2 NO) with 1 pole and 2 outputs, rated at 250 V and 10 A; Business Impact → Enables straightforward control logic and reliable actuation in compact spaces, reducing wiring complexity and potential load misconfigurations in line-power applications; Application → Ideal for panel controls in automated conveyors and machine controls where simple on/off signaling is required. Feature → Flush-mounted insert with mounting plate; Business Impact → Saves panel real estate and delivers a clean, professional appearance, lowering assembly time and rejection risk; Application → Suitable for tight enclosures and aesthetic panel integrations. Feature → Mounting with claw or screw; Business Impact → Flexible installation options accommodate varied panel depths and mounting preferences, accelerating field retrofits; Application → Works well in retrofittable control faces and modular frame systems. Feature → Screw terminals; Business Impact → Robust, vibration-tolerant wiring with easy field maintenance and low torque requirements; Application → Common in industrial cabinets where durable connections matter. Feature → IP20 protection; Business Impact → Protects internal components from dust ingress in indoor environments, reducing failure rates and service calls; Application → Suitable for indoor control panels in manufacturing lines. Feature → Optional neon orientation lamp (back of switch insert); Business Impact → Improves operator visibility and status indication without extra enclosure modifications; Application → Useful in machines requiring quick status checks at a glance. Feature → Regulatory compliance (CE, RoHS, REACH); Business Impact → Eases audit trails and supplier risk management, enabling faster approvals for manufacturing operations; Application → Critical for regulated industries and OEM deployments.
Get a Quick Quote for a ABB 2CKA001413A0491
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001413A0491?
Enquire Now
FAQs
The unit is a flush-mounted insert designed for panel mounting with a mounting plate and supports modular design ranges such as Busch-Duro 2000 SI and Reflex SI. It offers mounting with claw or screw and uses screw terminals. This makes it straightforward to retrofit into existing panel tiers and align with other ABB modular components.
The device provides two normally open contacts (2 NO) in a single-pole configuration, rated for 250 V and 10 A, with two outputs. It has IP20 ingress protection, uses screw terminals for reliable connections, and is certified under CE, RoHS, and REACH, aligning with common industrial safety and sustainability requirements.
Install by flush-mounting the insert in the panel cutout and securing with either claws or screws as required. Connect the inputs and outputs through the screw terminals, noting 1 input and 2 outputs for the 1P, 2 NO configuration. The built-in depth is 25 mm, with overall net dimensions of 71 x 71 mm, facilitating compact assemblies.
Documentation includes CE Declaration of Conformity, RoHS information, and REACH declarations with a 2025-02-18 REACH date. Additional compliance references cover SCIP, CMRT, WEEE categorization, and ETIM 9/eClass variants, helping with supplier audits, product lifecycle management, and regulatory reporting for industrial deployments.
The 2NO, 10 A push switch in a flush-mounted insert simplifies control logic and reduces wiring complexity, saving assembly time and minimizing mounting depth. Its compatibility with multiple design ranges, robust screw-terminal wiring, and IP20 interior protection lower maintenance costs and downtime while supporting scalable panel designs for diverse automation projects.
