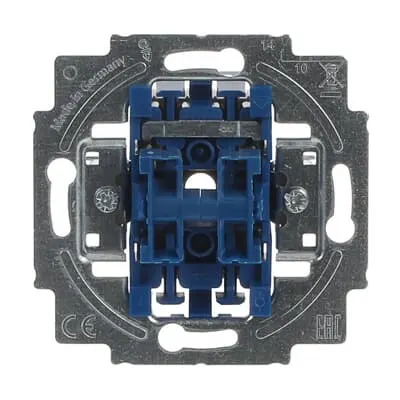

ABB 2CKA001413A0509 Push Switch Insert - IP20
Part Number: 2CKA001413A0509
Quick Summary
Push Switch Insert ABB 2CKA001413A0509 provides compact, two-pole switching for control panels and enclosure doors. Engineers frequently confront flush-mounted modules that are difficult to wire neatly and still withstand daily operation in tight spaces. This solution aligns with CE conformity, RoHS, and REACH requirements while offering IP20 protection for standard industrial environments. The combination of a flush-mounted insert with a mounting plate, screw terminals, and a 2 NO / 2P configuration delivers reliable, easy-to-install control at scale. With compatibility to a broad design range and support for optional orientation lighting, it supports efficient panel wiring and faster commissioning in industrial automation projects.
Product Information
Extended Description
2CKA001413A0509 ABB: 2 normally open contacts. 2x1pol.
Neon lamp 8338-1 as orientation light can be added from the back of the switch insert.
Wiring Diagram
Connection diagramm [EN] 2020us-205-101_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Contacts Configuration
2 NO, 0 NC
Number of Poles
2P
Number of Outputs
2
Number of Inputs
2
Number of Rocker Switches
2
Wiring Configuration
Series 2-pole push switch
Actuator Type
Push button
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts NO
2
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
Dimension Diagram
Dimension drawing [EN] m_2020usgl
RoHS Information
Product Declaration.PDF [EN] 2020 US-205-101
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
0231ccc7-f5c4-4281-973b-228f5e85e815 Germany (DE)
Simplified SCIP
0231ccc7-f5c4-4281-973b-228f5e85e815 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2020 US-205-101
ETIM 9
EC000029 - Push button
eClass
V11.0 : 27144044
Feature: Flush-mounted, panel-ready design → Business impact: Reduces enclosure depth and improves aesthetics, enabling compact control panels in limited spaces; Application: Used in machine enclosures and control cabinets. Feature: 2P, 2 NO contact configuration → Business impact: Simplifies wiring for two independent circuits, increasing reliability and reducing parts count; Application: Start/stop and interlock functions in automation stations. Feature: Screw terminals with 2 outputs and 2 inputs → Business impact: Fast, secure termination that minimizes loose wiring; Application: Dense control panels with clean harnesses. Feature: Rated 250 V, 10 A, IP20 → Business impact: Handles typical industrial loads with protection against dust and incidental contact; Application: General-purpose control switching in panel systems. Feature: Mounting with claw or screw and included mounting plate → Business impact: Flexible installation options; Application: Retrofit and new builds across various panel geometries. Feature: Optional neon orientation lamp (back-side installation) → Business impact: Improves machine visibility and fault diagnosis during operation; Application: Panel status indicators in hazardous or crowded environments. Feature: Design Range compatibility (Busch-Duro 2000 SI, Reflex SI, etc.) → Business impact: Streamlines component harmonization across product families; Application: Standardized enclosures and modular systems. Feature: RoHS and REACH compliance with CE declaration → Business impact: Reduces regulatory risk and simplifies compliance documentation; Application: Procurement and quality assurance for regulated industries. Feature: Lightweight, compact footprint (71 x 71 mm, 40 mm depth, 60 g) → Business impact: Eases integration in dense layouts and reduces assembly time; Application: Small-form-factor control panels where space is at a premium.
Get a Quick Quote for a ABB 2CKA001413A0509
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001413A0509?
Enquire Now
FAQs
This flush-mounted insert is designed for mounting with a mounting plate and supports both claw and screw fastenings. It includes a flush-mounted insert suitable for back-of-panel wiring and provides screw terminals for straightforward, secure terminations. Refer to the wiring diagram EN 2020us-205-101_a for exact wiring routes and contact configuration.
The unit provides 2 normally open (NO) contacts, configured as 2P with 2 outputs and 2 inputs. It is rated for 250 V and 10 A, making it suitable for controlling typical control circuits and motorized loads within industrial panels while keeping wiring simple and reliable.
Yes. The product carries CE declarations and RoHS/REACH compliance. RoHS Status aligns with EU Directive 2011/65/EU and Amendment 2015/863, while REACH declarations indicate presence of substances above 0.1 mass%. This aligns procurement with regulatory requirements and reduces compliance risk.
This insert is designed for broad compatibility within the Busch family and related modular systems, including Busch-Duro 2000 SI and Reflex SI, plus numerous design-range variants. This enables consistent aesthetics and electrical performance across multiple control panels and machine interfaces, simplifying engineering choices and spare parts planning.
Yes. A neon lamp (8338-1) orientation light can be added from the back of the switch insert. This option improves visibility for operator awareness and fault diagnosis in dim environments, contributing to safer and more efficient operations in busy production lines.
