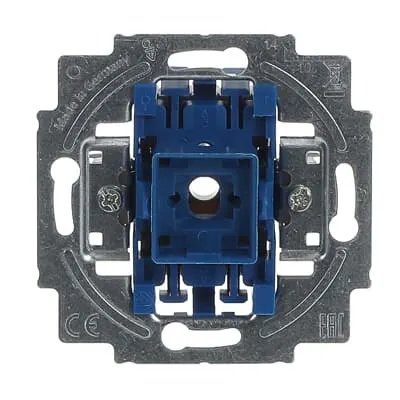

ABB 2CKA001413A0517 Push Switch Insert - IP20
Part Number: 2CKA001413A0517
Quick Summary
Push switch insert ABB 2CKA001413A0517 provides reliable panel control for industrial machines. Engineers often struggle with wiring complexity and retrofit downtime, which this unit helps address by using screw terminals and a compact flush-mounted insert. The design aligns with IP20 protection and CE, RoHS, and REACH declarations, supporting safe operation in typical factory environments. Its 1P+N arrangement with 1 NO, 1 NC, and 1 CO contacts enables flexible control schemes, while optional illumination and a robust mounting plate simplify status indication and quick installation in control panels.
Product Information
Extended Description
2CKA001413A0517 ABB: With N terminal.
Can be wired as
- NO: normally open contact
- NC: normally closed contact
- CO: change over (two way) contact
Wiring Diagram
Connection diagramm [EN] 2020us-206_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Number of Poles
1P+N
Number of Rocker Switches
1
Wiring Configuration
Two-way push switch
Actuator Type
Push button
Illumination
Optional
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts CO
1
Number of Contacts NC
1
Number of Contacts NO
1
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
Dimension Diagram
Dimension drawing [EN] m_2020usgl
RoHS Information
Product Declaration.PDF [EN] 2020 US-206
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2020 US-206
ETIM 9
EC000029 - Push button
eClass
V11.0 : 27144044
Feature: 1P+N with 1 NO, 1 NC, and 1 CO contacts. Benefit: Flexible control logic supports start/stop sequences and interlocking, reducing wiring complexity and potential fault paths. Application: Ideal for machine controls and process lines requiring two-way switching in compact form. Feature: Flush mounted mounting type. Benefit: Neat panel appearance and reduced front-depth in crowded control housings. Application: Suitable for flush-fit installations in instrument panels and safety enclosures. Feature: Screw terminals. Benefit: Fast, reliable field wiring with secure connections, minimizing commissioning time. Application: Industrial panels in assembly lines and packaging machines. Feature: Illumination (optional). Benefit: Immediate status feedback for operators, even in low-light environments. Application: Control stations, panel indicators, and maintenance zones. Feature: IP20 protection. Benefit: Enhanced dust resistance and safer operation within indoor electrical cabinets. Application: Factory dashboards and control panels. Feature: RoHS/REACH/WEEE compliance. Benefit: Regulatory peace of mind and easier lifecycle management. Application: Global manufacturing deployments with sustainability goals. Feature: Modular components with mounting plate. Benefit: Faster retrofits and scalable configurations across multiple stations. Application: Bell-and-porkrow environments with standard Busch frames and modular inserts.
