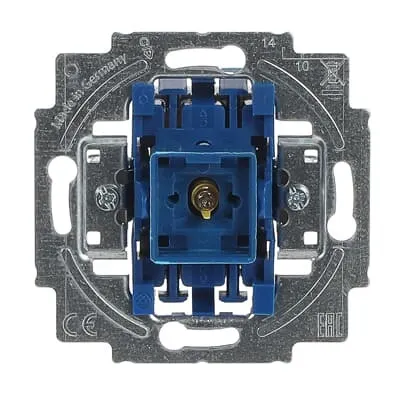

ABB 2CKA001413A0533 Push switch insert - IP20
Part Number: 2CKA001413A0533
Quick Summary
ABB 2CKA001413A0533 push switch insert is an illuminated panel-mount control for industrial signaling. Engineers often struggle with visibility and reliability in tight spaces, and a missed signal can cause downtime; this unit provides bright orange illumination and a robust 1 NO contact. It carries CE conformity, RoHS, and REACH declarations, plus IP20 protection, ensuring regulatory compliance and safe operation in demanding environments. With flush-mounted installation and flexible mounting options, it minimizes panel cutouts and maintenance effort, delivering long-term cost savings for modern assembly lines. Built-in N terminal simplifies wiring for common control circuits.
Product Information
Extended Description
2CKA001413A0533 ABB: With illumination. With N terminal.
Wiring Diagram
Connection diagramm [EN] 2621ww_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Contacts Configuration
1 NO, 0 NC
Number of Poles
1P+N
Wiring Configuration
1-pole push switch with N
Actuator Type
Push button
Lamp Type
Neon lamp
Illumination
Illuminated
Lamp Color
Orange
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts NO
1
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
Dimension Diagram
Dimension drawing [EN] m_2020usgl
RoHS Information
Product Declaration.PDF [EN] 2020 USGL
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2020 USGL
ETIM 9
EC000029 - Push button
eClass
V11.0 : 27144044
Feature: Illuminated Neon Lamp with Orange Color. Benefit: Immediate visual feedback improves operator response times and reduces misoperation, increasing line efficiency in machine signaling and start/stop control. Application: Suitable for panel-mounted dashboards in packaging and automation lines. Feature: 1 Pole + Neutral (1P+N) with 1 NO contact. Benefit: Simple wiring for common control circuits, supporting compact control architectures and easier PLC interfacing. Application: Control stations requiring a single normally open contact with a neutral reference. Feature: 250 V rated voltage and 10 A rated current. Benefit: Handles typical industrial loads with a robust safety margin, reducing component churn and downtime. Application: Industrial automation panels and machine enclosures. Feature: Flush Mounted mounting type with mounting plate included; Mounting with claw or screw. Benefit: Easy field retrofit and flexible installation, saving panel space and reducing installation time. Application: OEM panels and retrofit projects. Feature: IP20 environmental protection; Screw terminals. Benefit: Dust and incidental moisture resistance plus secure wiring connections, improving reliability in workshop and OEM environments. Application: Enclosures and control panels in manufacturing settings. Feature: RoHS, REACH declarations and CE conformity; WEEE compliance. Benefit: Regulatory compliance across EU markets, simplifying procurement and compliance audits. Application: Global supply chains and multi-site deployments.
Get a Quick Quote for a ABB 2CKA001413A0533
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001413A0533?
Enquire Now
FAQs
It is designed for flush-mounted installation and ships with a mounting plate. The unit supports mounting with claws or screws, providing flexible integration into panel cutouts of various depths while preserving a clean, low-profile front.
The switch features 1P+N wiring with 1 normally open contact (1 NO, 0 NC) and is rated for 250 V and up to 10 A, enabling straightforward control of common industrial loads and simple PLC interfacing via screw terminals.
Yes, it is illuminated with a neon lamp, and the lamp color is orange, providing high-visibility signaling even in dim environments.
The product carries RoHS information, REACH declarations, and CE conformity, ensuring regulatory compliance in EU markets. WEEE classification is also applicable for end-of-life handling.
Product net width and height are 71 mm, with a net depth of 40 mm and a built-in depth of 25 mm. The unit weighs about 60 g, making it suitable for compact panel designs and easy field replacement.
