ABB 2CKA001413A0574 Flush Mounted Insert - IP20
Part Number: 2CKA001413A0574
Quick Summary
ABB 2CKA001413A0574 Flush Mounted Insert is a compact 1P+N push-button switch designed for panel-mounted control in machine enclosures. This design resolves crowded panels by delivering a flush, space-saving interface that preserves operator access while maintaining a clean aesthetic. For engineers, the challenge is reliable mounting under varied panel thickness and wiring complexity; this insert includes a mounting plate and flexible fastening options to streamline installation. The device carries CE and UKCA declarations, RoHS and REACH compliance, and an IP20 rating to withstand typical factory environments. With 250 V rated voltage and 10 A capacity, it supports robust control tasks. Designed for modular ranges and easy wiring, it complements Busch-Duro and Reflex enclosures while delivering cost-efficient maintenance.
Product Information
Extended Description
2CKA001413A0574 ABB: With N terminal.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included

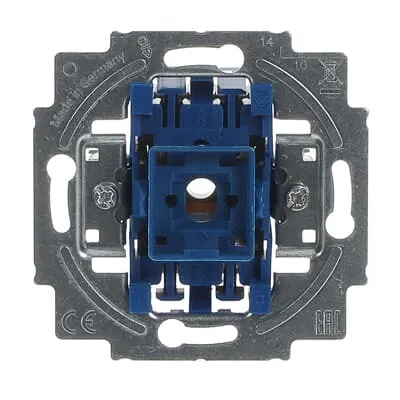

Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Contacts Configuration
1 NO, 0 NC
Number of Poles
1P+N
Actuator Type
Rocker
Product Type
with N-terminal
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2020 US-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2020 US-500
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] 2020 US-500
ETIM 9
EC000029 - Push button
eClass
-empty- | V11.0 : 27144044
Feature: Flush Mounted mounting with a mounting plate creates a low-profile installation that frees panel space while preserving a clean aesthetic. Business Impact: Reduces front-panel protrusion and minimizes interference with nearby components, enabling quicker upgrades and easier future reconfiguration. Application: Ideal for control panels in process skids and machine enclosures where space is at a premium and modularity is a priority. Feature: Mounting with Claw or Screw provides installation flexibility and reduces the need for specialized hardware. Business Impact: Streamlines field wiring and allows for adjustments during commissioning, cutting on-site labor time. Application: Suitable for retrofit projects in existing panels and new builds across automation lines. Feature: IP20 protection offers dust protection suitable for indoor equipment. Business Impact: Improves reliability in factory interiors while keeping costs down. Application: Enclosures and switchgear inside facilities with moderate exposure to particulates. Feature: 1 NO, 0 NC configuration with 1P+N wiring supports straightforward control logic. Business Impact: Simplifies wiring diagrams and reduces error-prone terminations, aiding commissioning. Application: Start/stop and signal-control panels in conveyors and packaging lines. Feature: Screw terminals enable secure, rugged connections. Business Impact: Facilitates maintenance and field servicing with reliable, repeatable terminations. Application: Panels in high-vibration environments where wiring integrity matters. Feature: RoHS/REACH compliance and CE/UKCA declarations ensure regulatory alignment. Business Impact: Lowers risk of non-compliance penalties and streamlines procurement. Application: European and UK manufacturing installations with strict component standards. Feature: Compact dimensions and light weight (71x71x40 mm, 60 g) with built-in depth 25 mm. Business Impact: Enables dense panel layouts and reduces assembly effort. Application: Space-constrained control panels in automated lines. Feature: Material options (Thermoplastic or Duroplast) and N-terminal design support versatile mounting and durability. Business Impact: Extends service life and reduces rework due to material compatibility issues. Application: Panel inserts for diverse enclosure ecosystems and malleable field service installations.
