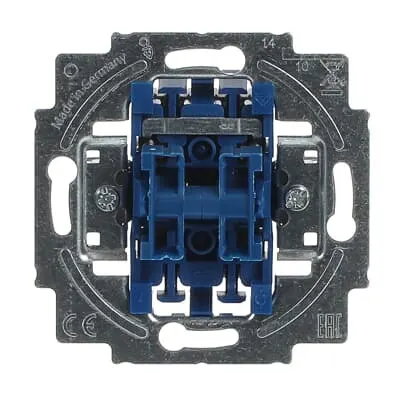

ABB 2CKA001413A0590 Blind Switch Insert - IP20
Part Number: 2CKA001413A0590
Quick Summary
ABB 2CKA001413A0590 Blind Switch Insert is a 1-pole push switch designed for flush-mounted control panels in industrial automation. Engineers often struggle with reliable interlock integration and compact footprints in tight panel enclosures, which this part helps resolve. This device carries CE conformity, IP20 protection, and RoHS/REACH compliance, ensuring safe, standards-aligned operation in typical automation environments. As a modular, flush-mounted insert with a mounting plate, it accelerates panel assembly and reduces maintenance costs while enabling robust interlock options for automated machinery.
Product Information
Extended Description
2CKA001413A0590 ABB: With interlock.
Wiring Diagram
Connection diagramm [EN] 2020_4u_eb_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Number of Poles
1P
Number of Buttons
2
Wiring Configuration
1-pole push switch
Actuator Type
Rocker/button
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Power
LEDi 100 V·A
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
Dimension Diagram
Dimension drawing [EN] m_2020usgl
RoHS Information
Product Declaration.PDF [EN] 2020/4 US
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
0231ccc7-f5c4-4281-973b-228f5e85e815 Germany (DE)
Simplified SCIP
0231ccc7-f5c4-4281-973b-228f5e85e815 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2020/4 US
ETIM 9
EC000044 - Window blind switch
eClass
V11.0 : 27144025
Flush-mounted design and 1P configuration deliver a compact footprint that streamlines panel layouts, reducing enclosure size and assembly time while maintaining reliable actuation. The 2-button rocker interface provides straightforward control for machine start/stop or interlock functions, improving operator ergonomics and safety. Rated at 250 V and 10 A with screwless terminals, it delivers dependable performance in demanding industrial environments, minimizing wiring complexity and maintenance downtime. The included mounting plate and the option for claw or screw fastening simplify installation across a range of panel thicknesses, reducing field service time and spare parts inventory. Material options (Thermoplastic or Duroplast) and surface finishes (Untreated or Matt) support diverse panel aesthetics and environmental considerations. Compliance with RoHS, REACH, and CE, along with SCIP and ETIM/eClass classifications, helps ensure regulatory alignment and easy procurement. The IP20 protection rating makes it suitable for indoor enclosures and standard control panels, while the built-in depth of 25 mm keeps panel depth costs predictable. This insert is ideal for interlock-enabled automation systems, where space, reliability, and standardization matter for ROI and uptime.
Get a Quick Quote for a ABB 2CKA001413A0590
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001413A0590?
Enquire Now
FAQs
Install the flush-mounted insert using the provided mounting plate. Choose mounting with claws or screws to suit your panel thickness, then connect using the screwless terminals for a quick, secure wiring. The interlock-ready design supports reliable safety interlocks in one-pole configurations.
The device is rated for 250 V and 10 A, with a maximum switching power of LEDi 100 V·A. It uses a 1-pole push switch configuration with 2 actuators, making it suitable for control-panel start/stop and interlock functions in standard automation tasks.
Yes, IP20 protection makes it appropriate for indoor, non-watertight control cabinets. Plan for clean, dry enclosures and proper sealing of surrounding penetrations. The flush-mounted design also minimizes exposed surfaces, enhancing safety and ease of cleaning.
The product carries CE conformity with the EU declaration of conformity, RoHS compliance, and REACH declarations. It is listed with SCIP and ETIM/eClass references, supporting regulatory procurement and classification within industrial catalogs.
Benefits include faster panel assembly due to mounting plate and plug-friendly connections, reduced field wiring complexity with screwless terminals, and reliable interlock operation that lowers downtime. Its compact, standardized design also reduces spare parts and training costs over the lifecycle of the machine.
