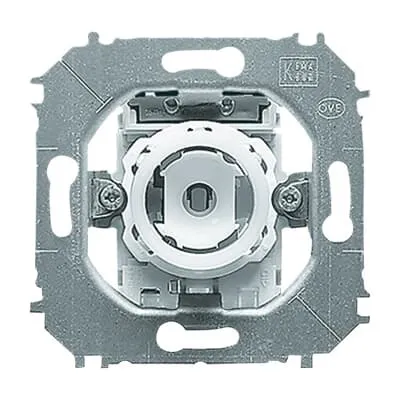

ABB 2CKA001413A0871 Push Switch - IP20, 10A, 1P
Part Number: 2CKA001413A0871
Quick Summary
ABB 2CKA001413A0871 Push Switch enables reliable two‑way impulse control in control panels. Engineers often face tight panel space, mounting limitations, and the need to maintain protection in compact enclosures. With CE conformity, RoHS compliance, and REACH declarations, plus an IP20 rating, this device meets modern regulatory expectations for industrial environments. Its flush-mounted design and mounting with claw or screws simplify retrofits, while a thermoplastic, matte finish delivers durable, low-profile operation. For procurement teams, the combination of performance, regulatory readiness, and ease of integration translates to faster assembly, reduced spare-part variety, and lower lifecycle costs.
Product Information
Extended Description
2CKA001413A0871 ABB: Suitable for impuls cover plate with operating knob.
Wiring Diagram
Connection diagramm [EN] 2021_6u_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Number of Poles
1P
Number of Rocker Switches
1
Wiring Configuration
Two-way push switch
Actuator Type
Push button
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts CO
1
Design Range
impuls
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
45 mm
Product Net Weight
62.5 g
Built-In Depth (t2)
32 mm
Dimension Diagram
Dimension drawing [EN] m_2001_6u
RoHS Information
Product Declaration.PDF [EN] 2021/6 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2021/6 U
ETIM 9
EC000029 - Push button
eClass
V11.0 : 27144044
1P, 1 CO, 250 V, 10 A electrical rating provides a straightforward single-pole, single-throw configuration ideal for impuls control in standard automation circuits. This specification reduces wiring complexity and enables dependable, repeatable switching in compact control panels. The flush-mounted mounting type supports clean panel aesthetics and minimizes protrusions, while mounting with claw or screws offers flexible installation across diverse enclosures. The IP20 protection rating guards against finger contact and dust intrusion in indoor environments, supporting longer service life in typical factory settings. The thermoplastic body with a matte finish delivers rugged durability and easy cleaning, reducing maintenance costs over the life of the panel switch. Compliance with CE, RoHS, and REACH, along with ETIM EC000029 and eClass 27144044 classifications, ensures reliable procurement and engineering validation for regulated industries. The compact dimensions (71 mm net width/height, 45 mm net depth) support dense panel layouts and easy integration with impulse cover plates operating knob.
Get a Quick Quote for a ABB 2CKA001413A0871
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001413A0871?
Enquire Now
FAQs
This switch is designed for flush-mounted installation and supports mounting with claws or screws, enabling flexible retrofits in compact panels. Its dimensions and mounting options help align with common enclosure sizes while preserving panel aesthetics and ease of wiring.
The device provides 1P, 1 CO configuration with a rated voltage of 250 V and a rated current of 10 A. It operates as a two-way push switch suitable for impulse control applications, delivering reliable actuation within standard automation circuits.
Yes. It has CE conformity and RoHS compliance, along with REACH declarations. These certifications support regulatory approval for industrial equipment in many regions and help reduce compliance-related risk in procurement.
The actuator is thermoplastic with a matte finish, designed for indoor use. It carries an IP20 degree of protection, protecting against incidental contact and solid objects larger than 12 mm in normal indoor environments, which is typical for control panels and instrument housings.
The compact, robust design minimizes panel space, simplifies wiring, and reduces spare parts variety. Compliance documentation aids in faster commissioning, while durable construction and clear mounting options lower maintenance frequency and lifecycle costs in automated systems.
