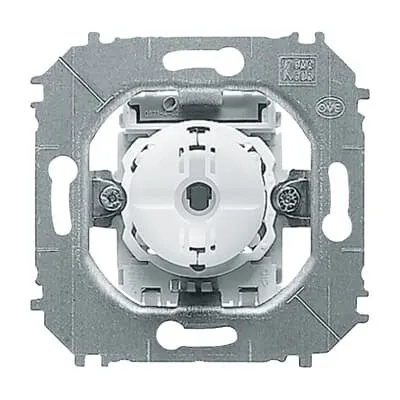

ABB 2CKA001413A0889 Push Button Insert - IP20
Part Number: 2CKA001413A0889
Quick Summary
ABB Push Button Insert 2CKA001413A0889 provides reliable two-pole control for machine panels. When space is at a premium, engineers need a compact, flush-mounted solution that won’t compromise accessibility or safety. This part addresses common pain points like panel crowding, wiring complexity, and inconsistent actuation force by delivering a robust 2 CO, 10 A switch with straightforward mounting. It carries CE conformity, RoHS compliance, REACH documentation, and a clear EU Declaration of Conformity, supporting global deployments and regulatory adherence. The design also uses thermoplastic with matt finish for durability in industrial environments. By pairing a precise, 71 mm square footprint with easy mounting options, it reduces install time and total cost of ownership while improving panel aesthetics and reliability.
Product Information
Extended Description
2CKA001413A0889 ABB: 2gang 1way Suitable for impuls cover plate with operating knob.
Wiring Diagram
Connection diagramm [EN] 2021_6_6u_a
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP20
Number of Poles
1P
Number of Rocker Switches
2
Wiring Configuration
Alternating-/alternating push switch
Actuator Type
Push button
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Number of Contacts CO
2
Design Range
impuls
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
45 mm
Product Net Weight
68 g
Built-In Depth (t2)
32 mm
RoHS Information
Product Declaration.PDF [EN] 2021/6/6 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2021/6/6 U
ETIM 9
EC000029 - Push button
eClass
V11.0 : 27144044
Feature → Business Impact → Application: Wiring Diagram and Installation details enable precise, repeatable connections in EN 2021_6_6u_a. This reduces wiring errors and speeds up panel builds, especially in compact control cabinets for robotics or packaging lines. Feature → Installation → Flush Mounted construction minimizes panel intrusion and simplifies field retrofits, improving accessibility for maintenance while preserving enclosure integrity in high-density panels. Feature → Mounting Flexibility → Mounting with Claw or Screw supports diverse cabinet designs and retrofit scenarios, cutting installation time and avoiding custom brackets during panel assembly for ABB and non-ABB systems. Feature → Electrical Performance → Rated 250 V and 10 A with 2 CO contacts provides reliable signal and control power for start/stop circuits, press-to-test sequences, and automation safety interlocks in conveyor lines and machine interfaces. Feature → Material & Finish → Thermoplastic, matt surface resists wear and grime, ensuring long-term readability of actuation points in harsh environments and enabling easier cleaning in food, packaging, and manufacturing environments. Feature → Compliance & Lifecycle → IP20 rating, RoHS/REACH compliance, and CE declaration support global procurement, reducing compliance risk and enabling seamless rollout across multinational facilities. Feature → Physical Footprint → 71 mm width and height with 45 mm depth delivers a compact footprint for 2-gang, 1-way configurations, allowing integration into impuls cover plates and standard control panels with minimal depth requirements. Feature → Maintenance & Durability → Light 68 g weight and robust mounting reduce vibration-related wear and simplify replacement in service and spare-part programs, boosting uptime and operator confidence in critical control points.
Get a Quick Quote for a ABB 2CKA001413A0889
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA001413A0889?
Enquire Now
FAQs
This push button insert is designed for flush-mounted installation in 2-gang panels with 2 changeover contacts (2 CO) and a 1P configuration. It supports mounting with claw or screws and fits standard impuls cover plates. The recommended footprint is 71 x 71 mm with a built-in depth of 32 mm, streamlining panel layout and wiring harness routing.
The device provides 250 V rated voltage and 10 A rated current with 2 CO contacts. It uses an alternating-/alternating push switch configuration suitable for control circuits and start/stop functions. With a 1P pole configuration and a 2-gang form factor, it delivers reliable actuation for common industrial automation tasks.
Yes. The 2CKA001413A0889 is specified as suitable for impuls cover plates with an operating knob. Its flush-mounted design and 71 mm square footprint support a clean panel appearance while maintaining accessibility and easy operation in high-traffic control areas.
The product carries CE conformity, RoHS compliance, and REACH documentation, with a EU Declaration of conformity available. It also aligns with WEEE categorization for small equipment, ensuring regulatory readiness in global deployments and helping procurement teams meet cross-border requirements.
With a thermoplastic body, matt finish, IP20 protection, and a lightweight 68 g design, the device resists wear and is easy to clean and inspect. The compact footprint and robust mounting reduce vibration wear, simplify field replacement, and support long service intervals in conveyor lines, packaging machines, and general automation applications.
