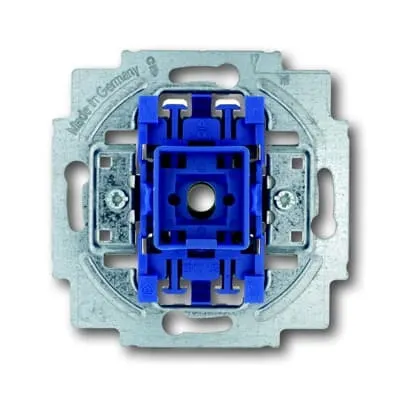

ABB 2CKA001413A1078 Flush Mounted Insert - IP20
Part Number: 2CKA001413A1078
Quick Summary
ABB 2CKA001413A1078 flush mounted insert with N-terminal enables compact, panel-friendly control interfaces for 1P+N circuits and single-rocker operation. This design helps solve crowded enclosures and wiring complexity by providing a clean, mount-ready solution. It carries CE conformity, RoHS compliance, and REACH declarations to support safe, regulatory-friendly deployment in automated panels. With IP20 protection and screw terminals, it delivers reliable connectivity in industrial environments while offering a compact footprint for space-constrained installations. Businesses gain faster assembly, reduces wiring errors, and improves maintenance efficiency, making this module a practical asset for retrofits and new machine controls alike.
Product Information
Extended Description
2CKA001413A1078 ABB: With N terminal.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Contacts Configuration
1 NO, 0 NC
Number of Poles
1P+N
Number of Rocker Switches
1
Actuator Type
Rocker
Product Type
with N-terminal
Terminal Type
Screw Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Design Range
Basic55
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Label Space Provided
No
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2020 US-507
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2020 US-507
ETIM 9
EC000029 - Push button
eClass
-empty- | V11.0 : 27144044
Feature → Business Impact → Application: Flush Mounted mounting type simplifies panel integration, reducing enclosure gaps and improving aesthetics while preserving access for maintenance. This leads to faster installation and fewer miswires in control cabinets across manufacturing lines. Feature → Application: 1P+N with 1 NO, 0 NC contact configuration enables straightforward wiring for single-phase control circuits, minimizing configuration errors in process automation setups. Feature → Application: Rocker actuator with Screw Terminals supports robust user interaction and secure wire connections in harsh environments, enhancing reliability for conveyor, pump, or valve control panels. Feature → Application: IP20 protection and compact footprint (71 x 71 x 40 mm) suit compact control panels and enclosures, improving space utilization and cooling efficiency in machine automation. Feature → Application: N-terminal connection and mounting plate compatibility streamline retrofits, allowing quick integration with existing mounting infrastructure in industrial facilities. Feature → Application: Compliance with CE, RoHS, and REACH ensures regulatory alignment, reducing risk and accelerating audits in automotive, packaging, and food & beverage packaging lines.
