ABB 2CKA001413A1103 Flush Mounted Inserts - IP20
Part Number: 2CKA001413A1103
Quick Summary
ABB 2CKA001413A1103 Flush Mounted Inserts deliver compact, reliable 1-pole push switch control for panel-mounted automation in industrial equipment. When space is tight and interlock integrity is critical, this design enables quick, secure mounting with a ready interlock feature. The product carries CE conformity, RoHS compliance, and REACH declarations, along with IP20 protection to withstand typical control panel environments. For OEMs, the combination of a sturdy mounting plate, screwless terminals, and a 1P, 2-button arrangement translates into faster assembly, fewer wiring mistakes, and easier field servicing. By aligning with established design ranges like Busch-Duro 2000 SI and Reflex SI, it also supports scalable configurations and standardized procurement, reducing inventory variety while maintaining performance.
Product Information
Extended Description

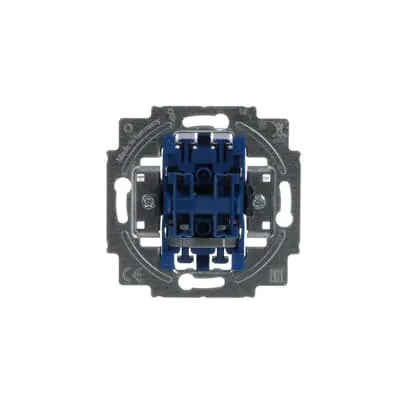

2CKA001413A1103 ABB: With interlock.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Degree of Protection
IP20
Number of Poles
1P
Number of Buttons
2
Wiring Configuration
1-pole push switch
Actuator Type
Rocker
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Maximum Switching Power
LEDi 100 V·A
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Allwetter 44 (IP 44) | alpha
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic | Duroplast
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
40 mm
Product Net Weight
60 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 2020/4 US-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
0231ccc7-f5c4-4281-973b-228f5e85e815 Germany (DE)
Simplified SCIP
0231ccc7-f5c4-4281-973b-228f5e85e815 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 2020/4 US-500
ETIM 9
EC000044 - Window blind switch
eClass
V11.0 : 27144025
